Carbon Steel Sheets & Plates

Table of Content

  •   What is Carbon Steel Sheets & Plates
  •   Specification of Carbon Steel Sheets & Plates
  •   Equivalent Grades of Carbon Steel Sheets & Plates
  •   Chemical Composition of Carbon Steel Sheets & Plates
  •   Dimensions of Carbon Steel Sheets & Plates
  •   Thickness Chart of Carbon Steel Sheets & Plates
  •   Weight Chart of Carbon Steel Sheets & Plates
  •    Carbon Steel Type Sheets & Plates
  •    Carbon Steel Price Per Kg (As per demand and manufacturer)
  •   People also Search for Carbon Steel Sheets & Plates
  •   Export Destinations
  •   Domestic Supply

    • Ranflex Metals is a full line distributor, processor and supplier of carbon steel plates such as Structural Steel Plates, High Tensile Steel Plates, High Yield Steel Plates, Boiler Quality Plates, Pressure Vessel Steel Plates and Medium Carbon Steel Plates. We can supply cut to size carbon steel plates, with both narrow and wide widths. Our stock of carbon steel plates includes thickness of 3mm up to 300mm with width of 1250mm, 1500mm, 2000mm, and 2500mm.

    An ISO 9001:2008 Certified Company, Ranflex Metals is an international distributor and supplier of carbon steel plates in various sizes and grades such as ASTM A36, IS 2062 Grade A, IS 2062 Grade B, SS400, S235JR, S275JR, A 537 Class 1, Offshore Grades Plates, HIC Resistant Steel Plates, Cr Mo Alloy Steel Plates (ASTM A 387 Grade 11/22 Class 2) and Boiler & Pressure Vessel Plates (to NACE MR0175 & MR0103, A/SA 516 grade 60, 65 and 70). Thicknesses available range from 3mm up to as thick as 350mm. Carbon steel plates are widely used in shipbuilding, offshore platforms, boilers, pressure vessels and fabricated pipelines.

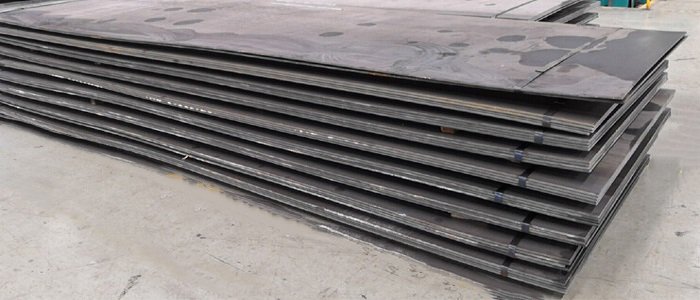

    Carbon Steel Sheets & Plates

    Structural Carbon Steel Plates :

    • ASTM (USA): A 36, A 283: A, B, C, D
    • IS (INDIA): IS 2062: E250 Gr A/ B/ C
    • DIN (GERMANY): DIN 17100: ST 37.3, ST 44.2, ST 44.3
    • BS (ENGLAND): BS 4360: 40, 43
    • EN (EUROPE): EN 10025: S235, S275
    • JIS (JAPAN): G 3106: SM400, G 3101: SS400

    High Tensile Carbon Steel Plates :

    • ASTM (USA): A572: Gr 42, Gr 50, A656 Gr 50
    • IS (INDIA): IS 2062: E300,E350,E410, E450, SAILMA: 300HI, 350HI, 410HI, 450HI, IS 8500: FE 440, FE 490, FE540, FE 570
    • DIN (GERMANY): 17100: ST 44.3, ST 52.3
    • BS (ENGLAND): BS 4360: 43, 50
    • EN (EUROPE): EN 10025: S275, S355, EN 10113
    • JIS (JAPAN): G 3101: SS490, G 3106: SM 490, SS520

    Medium Carbon Steel Plates :

    • ASTM (USA): SAE 1045
    • IS (INDIA): IS 5517: 45C8, IS 4432
    • DIN (GERMANY): DIN 17200: C45, EN 8
    • BS (ENGLAND): BS 970: 080 M 46
    • EN (EUROPE): EN 10083: C45
    • EN (EUROPE): EN 10083: C45

    Additional Information :

    • Mail Carbon Steel Grades IS 2062: E250 Gr A/ B/ C, EN 10025: S235, S275, DIN 17100: ST 37.3, ST 44.2, ST 44.3, IS 2062: E300,E350,E410, E450, SAILMA: 300HI, 350HI, 410HI, 450HI, IS 8500: FE 440, FE 490, FE540, FE 570, EN 10025: S275, S355, EN 10113, A515: Gr60, Gr70, A 516: Gr60, Gr65, Gr70, C45, EN 8
    • MOQ 50 kg’s to Production Qty’s
    • Delivery tim Promptly (Stock) or 10-40 days (Production)
    • Stock Available
    • MTC Mill TC EN 10204 3.1, Third Party Inspection, NDT/DT Test Reports

    Specification of Carbon Steel Sheets & Plates :

    Specifications: ASTM A283, A516 / ASME SA283, SA516
    Thickness: 4 mm To 100 mm
    Length: 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
    Width: 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
    Grade 301,302,303,304,304L,304N,309,309S,310,316,316L,321,347
    Application Building industry,architectural decoration,elevators,building doors,panels and so on.
    Standard: ASTM，AISI，JIS，GB， DIN，EN
    Surface: BA，2B，NO.1，NO.4，4K，HL，8K
    Certification: ISO, SGS，BV
    Technique: Cold Rolled Hot Rolled
    Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
    Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils

    Equivalent Grades of Carbon Steel Sheets & Plates :

    Name Werkstoff Number ASTM BS Temperature Use
    Durehete 900 T22 42CrMo5.6 1.7233 – BS1506 631-850 Up to 480ºC
    Durehete 950 T31 40CrMoV4.6 1.7711 ASTM A193 B16 BS1506 671-850 Up to 510ºC
    Durehete 1055
    T41    		 20CrMoVTiB4.10 1.7729 – BS1506 681-820 Up to 570ºC
    25CrMo4 – 1.7218 – – Up to 400ºC
    21CrMoV5.7 – 1.7709 – – Up to 540ºC
    42CrMo4 – 1.7225 ASTM A193 B7 BS1506 630-860 Up to 450ºC

    Chemical Composition of Carbon Steel Sheets & Plates :

    BS 970: 1955 Chemical Composition
    C% Si% Mn% Ni% Cr/strong>% Mo% S% P%
    EN3B 0.25Max 0.35Max 1.0Max – – – 0.06Max 0.06Max
    EN1A 0.07/0.15 0.10Max. 0.80/1.20 – – – 0.20/0.30 0.07Max
    EN8 0.35/0.45 0.05/0.35 0.60/1.00 – – – 0.06Max 0.06Max
    EN9 0.50/0.60 0.05/0.35 0.50/0.80 – – – 0.06Max 0.06Max
    EN16 0.30/0.40 0.10/0.35 1.30/1.80 – – 0.20/0.35 0.05Max 0.05Max
    EN19 0.35/0.45 0.10/0.35 0.50/0.80 – 0.90/1.50 0.20/0.40 0.05Max 0.05Max
    EN24 0.35/0.45 0.10/0.35 0.45/0.70 1.30/1.80 0.90/1.40 0.20/0.35 0.05Max 0.05Max

    BS 970 1991 BS 970 1955 EN AISI/SAE Werkstoff
    070M20 EN3B 1020 1.0402
    220M07 EN1A 1113 1.0711
    230M07 EN1A 1213 1.0715
    080M40 EN8 1040 1.1186
    080A42 EN8D 1042 –
    070M55 EN9 1055 1.0535
    605M36 EN16 – –
    708M40 EN19 4140 1.7225
    817M40 EN24 4340 1.6582

    Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Carbon Steel Sheets & Plates :

    Carbon Steel Sheets & Plates dimensions

    Sheet & Plate Surface finish Thickness (mm) Width (max mm)
    2B – Cold rolled, heat treated, pickled, skin passed Sheet 0.25–8.0 2032
    2D – Cold rolled, heat treated, pickled Sheet 0.4–6.35 1524
    2E – Cold rolled, heat treated, mechanically descaled plate 0.4–8.0 2032
    2R – Cold rolled, bright annealed plate 0.25–3.5 1524
    2H – Work hardened plate 0.4–6.35 1524
    Polished, brushed plate 0.5–4.0 1524
    ASTM A240 Carbon Steel Sheet & Plate Imperial Dimensions :
    Sheet & Plate Surface finish Gauge (in) Width (max in)
    2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
    2D – Cold rolled, heat treated, pickled plate 12–24 60
    BA Mexinox only 18–28 48
    Polished Sheet (not brushed) 11–24 60
    Temper rolled Sheet Mexinox only 13–29 48

    Thickness Chart of Carbon Steel Sheets & Plates :

    Thickness Thickness Size Range Surface Area per Unit weight Approx Weight per Sheet
    inches mm   lbs/ft² kg/m² lbs kg
    0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936
    0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617
    0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195
    0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404
    0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807
    0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872
    0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248
    0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156
    0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807
    0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872
    0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937
    0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378
    0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496
    0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067
    0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156
    0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695
    0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872
    0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234
    0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261
    0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496
    0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573
    0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197
    0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872
    0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234
    0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937

    Weight Chart of Carbon Steel Sheets & Plates :

    Plate Thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
    3 23.55 28.3 35.3 42.4 56.5
    4 31.4 37.7 47.1 56.5 75.4
    5 39.25 47.1 58.9 70.7 94.2
    6 47.1 56.5 70.7 84.8 113
    8 62.8 75.4 94.2 113 150.7
    10 78.5 94 118 141 188
    12 94.2 113 141 170 226
    16 125.6 151 188 226 301
    20 157 188 236 283 377
    22 172.7 207 259 311 415
    25 196.25 236 294 353 471
    28 219.8 264 330 396 528
    32 251.2 301 377 452 603
    36 282.6 339 424 509 678
    40 314 377 471 565 754
    45 353.25 424 530 636 848
    50 392.5 471 589 707 942
    55 431.75 518 648 777 1036
    60 471 565 707 848 1130
    65 510 612 765 918 1224
    70 549.5 659 824 989 1319
    75 588.75 707 883 1060 1413
    80 628 754 942 1130 1507
    90 706.5 848 1060 1272 1696
    100 785 942 1178 1413 1884

    Weight Per Square Meter of Carbon Steel Sheets & Plates :
    Size (mm) Weight per
    Sheet (Kg)    		 Size (mm) Weight per
    Sheet (Kg)
    2000 x1000 x 0.7 11.5 2500 x 1250 x 1.5 38.4
    2500 x1250 x 0.7 17.9 3000 x 1500 x 1.5 55.3
    2000 x1000 x 0.9 14.7 2000 x 1000 x 2.0 32.7
    2500 x1250 x 0.9 23.0 2500 x 1250 x 2.0 51.2
    2000 x1000 x 1.0 16.4 3000 x 1500 x 2.0 73.7
    2500 x1250 x 1.0 25.6 2000 x 1000 x 2.5 40.9
    3000 x1500 x 1.0 36.8 2500 x 1250 x 2.5 63.9
    2000 x1000 x 1.2 19.6 3000 x 1500 x 2.5 92.1
    2500 x1250 x 1.2 30.7 2000 x 1000 x 3.0 49.6
    3000 x1500 x 1.2 44.2 2500 x 1250 x 3.0 77.5
    2000 x1000 x 1.5 24.6 3000 x 1500 x 3.0 112.0

    Weight – Imperial Units of Carbon Steel Sheets & Plates :
    Nominal Size Thickness
    (inches)    		 Weight
    (lb/ft2)
    3/16 7.65
    1/4 10.2
    5/16 12.8
    3/8 15.3
    7/16 17.9
    1/2 20.4
    9/16 22.9
    5/8 25.5
    11/16 28.1
    3/4 30.6
    13/16 33.2
    7/8 35.7
    1 40.8
    1 1/8 45.9
    1 1/4 51.0
    1 3/8 56.1
    1 1/2 61.2
    1 5/8 66.3
    1 3/4 71.4
    1 7/8 76.5
    2 81.6
    2 1/8 86.7
    2 1/4 91.8
    2 1/2 102
    2 3/4 112
    3 122
    3 1/4 133
    3 1/2 143
    3 3/4 153
    4 163
    4 1/4 173
    4 1/2 184
    5 204
    5 1/2 224
    6 245
    6 1/2 265
    7 286
    7 1/2 306
    8 326
    9 367
    10 408

    Weight – Metric Units of Carbon Steel Sheets & Plates :
    Plate Thickness
    (mm)    		 Weight
    (kg/m2)
    1.6 12.6
    2.0 15.7
    2.5 19.6
    3 23.6
    3.2 25.1
    4 31.4
    5 39.3
    6 47.1
    8 62.8
    10 78.5
    12.5 98.1
    15 118
    20 157
    22.5 177
    25 196
    30 236
    32 251
    35 275
    40 314
    45 353
    50 393
    55 432
    60 471
    65 510
    70 550
    75 589
    80 628
    90 707
    100 785
    110 864
    120 942
    130 1051
    150 1178
    160 1256
    180 1413
    200 1570
    250 1963

    Carbon Steel Type Sheets & Plates

    Carbon Steel Sheets

    Carbon Steel Sheet
    Carbon Steel Plates

    Carbon Steel Plate
    Carbon Steel Chequered Plate

    Carbon Steel Chequered Plate


    Carbon Steel Shim Sheet

    Carbon Steel Shim Sheet
    Carbon Steel Perforated Sheet

    Carbon Steel Perforated Sheet
    Carbon Steel Clad Plate

    Carbon Steel Clad Plate


    Carbon Steel Price Per Kg (As per demand and manufacturer):

    Price of Carbon Steel Sheets & Plates manufacturer in India Price in USD (per kg) Price in Euro (per kg) Price in UAE Dirham (per kg)
    Carbon Steel Sheet 280 - 300 3.25 - 3.49 13.51 - 14.47
    Carbon Steel Plate 300 - 350 3.49 - 4.07 14.47 - 16.88
    Carbon Steel Sheet manufacturer 290 - 310 3.35 - 3.59 13.61 - 14.57
    Carbon steel Plate manufacturer 310 - 360 3.59 - 4.17 14.57 - 16.98
