Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.

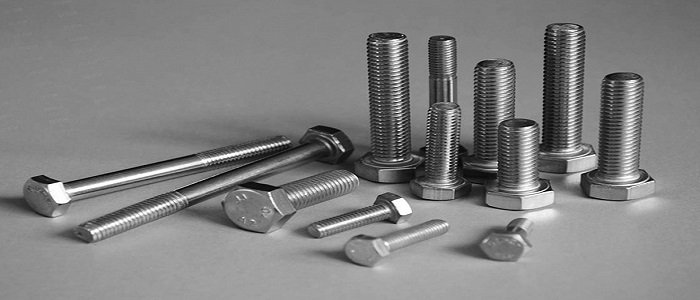

Our 904L Stainless Steel Fasteners product range includes 904L Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
We export to United State,Canada, Kazakhstan, Algiers, Johannesburg, Pretoria, Dakar, Ghana, Uganda, Mozambique, Iraq, Subra al-Haymah,Australia, Yaounde, Saudi Arabia, Kampala, Benin, Ethiopa, Kuwait, Nairobi, Turkey, Russia, Khartoum, Kano, UAE, Bahrain, London, Lebanon, Tunisia, Qatar, Zaria, Dubai, Yemen, Casablanca, South Africa, Oman, UK,USA, Argentina, China,Las Vegas Hong Kong, Vietnam, Singapore, Egypt, Venezuela, Iran,Vancouver Malaysia, Mexico, New York, Indonesia, Italy, Azerbaijan, Israel, Brazil, United States, Thailand (Bangkok), Cyprus, Sri Lanka, Colombo, Germany
Specifications | ASTM A193 / A193, ASME SA193 / SA194 |
Standard | DIN, ASTM, BS and all International Standards |
Length | 3 mm to 200 mm |
Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Machine Screws Size | M1.6 - M12 |
Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Type | Bolts, Nuts, Sockets, Screws, Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Pan Head Screw, Allen Cap screw, Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Wing Screw, T-Head Bolts, Foundation Bolts, Eye Bolt,Structural Bolts. |
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
904L | N08904 | 904S13 | X1NiCrMoCu25-20-5 | 1.4539 | – | – | SUS 890L |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
904L | min. | – | – | – | – | – | 19.0 | 4.00 | 23.00 | 0.10 |
max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
904L | 490 | 220 | 35 | 70-90 typical | – |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
904L | 8000 | 200 | 15.0 | – | – | 13.0 | – | 500 | 850 |
Looking for 904L stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 904L stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 904L screws, 904L bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
---|---|---|---|---|---|---|---|---|
D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
---|---|---|---|---|---|---|---|---|
D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Diameter | ||
---|---|---|
Plain | ||
UNC | 8UN | |
1/2 | 19568 | - |
5/8 | 19569 | - |
3/4 | 19570 | |
7/8 | 19571 | - |
1 | 19572 | - |
11/8 | 19573 | 13979 |
11/4 | 19574 | 13980 |
13/8 | 19656 | 13981 |
11/2 | 19657 | 13982 |
13/4 | 19658 | 13983 |
2 | 19659 | 13984 |
Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
---|---|---|---|---|---|---|---|---|
maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
---|---|---|---|---|---|---|---|---|
D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Weights for DIN 6914 Bolts
Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations.
Diameter | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
---|---|---|---|---|---|---|---|---|
Length | ||||||||
30 | 49.1 | |||||||
35 | 53.6 | |||||||
40 | 58.0 | 105 | ||||||
45 | 62.1 | 113 | 188 | |||||
50 | 66.6 | 121 | 200 | 257 | ||||
55 | 71.0 | 129 | 212 | 272 | ||||
60 | 75.4 | 137 | 225 | 286 | 362 | |||
65 | 79.9 | 145 | 237 | 301 | 380 | |||
70 | 84.3 | 153 | 249 | 316 | 398 | 532 | ||
75 | 88.8 | 160 | 262 | 331 | 415 | 554 | 701 | |
80 | 93.2 | 168 | 274 | 346 | 433 | 576 | 728 | |
85 | 97.6 | 176 | 286 | 361 | 451 | 599 | 756 | 1184 |
90 | 102 | 184 | 298 | 375 | 467 | 621 | 784 | 1224 |
95 | 107 | 192 | 310 | 390 | 485 | 644 | 812 | 1264 |
100 | 199 | 322 | 405 | 503 | 665 | 838 | 1904L | |
105 | 207 | 335 | 420 | 520 | 688 | 865 | 1336 | |
110 | 215 | 347 | 435 | 538 | 710 | 893 | 1376 | |
115 | 223 | 359 | 450 | 556 | 732 | 921 | 1415 | |
120 | 231 | 372 | 465 | 574 | 755 | 949 | 1455 | |
125 | 239 | 384 | 479 | 591 | 777 | 976 | 1495 | |
130 | 247 | 396 | 494 | 609 | 800 | 1004 | 1535 | |
135 | 409 | 509 | 627 | 822 | 1032 | 1575 | ||
140 | 421 | 524 | 645 | 845 | 1059 | 1615 | ||
145 | 433 | 539 | 662 | 867 | 1087 | 1655 | ||
150 | 446 | 554 | 680 | 890 | 1115 | 1695 | ||
155 | 458 | 569 | 698 | 912 | 1143 | 1735 | ||
160 | 584 | 716 | 935 | 1170 | 1775 | |||
165 | 599 | 733 | 957 | 1198 | 1815 | |||
170 | 751 | 979 | 1226 | 1855 | ||||
175 | 769 | 1002 | 1254 | 1895 | ||||
180 | 787 | 1024 | 1281 | 1935 | ||||
185 | 804 | 1047 | 1309 | 1974 | ||||
190 | 822 | 1069 | 1337 | 2014 | ||||
195 | 840 | 1092 | 1365 | 2054 | ||||
200 | 1114 | 1392 | 2094 |
DIN 931 & DIN 934
Approximate weights in kilograms (Kg’s) each
Price of SS 904L Bolts manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
Stainless Steel Bolts Grade – 904L | $6.20 | €5.90 | 22.24 UAE Dirham |
Stainless Steel Hex Bolts 904L | $5.30 | €5.05 | 18.93 UAE Dirham |
Stainless Steel Square Nuts Grade – 904L | $3.30 | €3.14 | 11.60 UAE Dirham |
