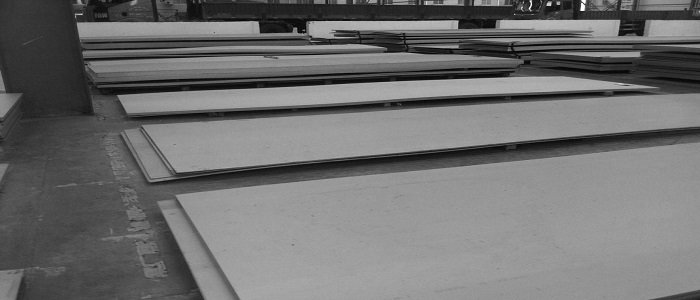

We are a specialist distributor, processor and supplier of Duplex stainless steels sheets and plates – covered under ASTM A240/A240M. Standard size Duplex 2205/UNS S31803 sheets and plates are readily available ex-stock, while custom cut sizes can be supplied on request. We are suppliers of ASTM A240 Stainless Steel Duplex sheets and plates made by world’s leading mills, such as Jindal Stainless Ltd., POSCO, DKC- Korea, European Mills, NTK- Japan, TISCO, Aperam and others. We can supply cut to size Stainless Steel Duplex sheets, with both narrow and wide widths.
An ISO 9001:2008 Certified Company, Ranflex Metals is a leading stockholder, supplier and exporter of Duplex 2205, UNS S31803 Stainless Steel Coils, Sheets and Plates in India and Worldwide. Duplex Stainless Steel Coils and Plates can be cut to your specifications and supplied with complete set of mill test reports. Custom length and width up to 2000 mm can be made available in case of stainless steel Duplex sheets and coils. Exports is Our Specialty!
Alloy 2205 (UNS S31803) is one of the most recognized and widely used duplex stainless steel grade, with excellent general corrosion resistance and superiority over grade 304 or 316 in most environments. Ranflex Metals is a stockholder and supplier of various grades of duplex stainless steels including UNS 31803 (F51) and UNS 32205 (F60) Alloy 2205. The ratio of ferrite to austenite in Duplex stainless steel is approximately 50:50.
The characteristic feature of duplex stainless steels is their dual phase microstructure, comprising of approximately 50% of austenitic and 50% of ferrite. The yield strength of duplex stainless steel is typically double that of austenitic stainless steel.
Duplex fittings, duplex pipes and duplex plates are one of the key product items of Ranflex Metals and are widely supplied from stock to various industries such as chemical, petrochemical, marine, oil and gas and transportation. Duplex pipes, tubing’s and fittings are widely used for oil field piping works and heat exchangers, duplex plates are used in manufacturing vessels, while duplex bars are used for manufacturing fasteners and high strength pump shafts.
Duplex stainless steel plates are considered as a cost effective grade due to lower nickel and molybdenum contents than their austenitic counterparts of similar corrosion resistance. Due to the lower alloying content, duplex stainless steels plates are generally lower in cost. Also, due to higher yield strength it could also be possible to reduce the thickness of duplex stainless steel products, compared to austenitic stainless steel. The dual benefit of lower prices and weight savings make duplex stainless steels plates economically very effective for project managers.
The ASTM A240 specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications. The steel shall conform to the requirements as to chemical composition specified. The material shall conform to the mechanical properties specified.
Specification of Duplex Steel Sheets & Plates :
| Specifications: | ASTM A240 / ASME SA240 |
| Thickness: | 4 mm To 100 mm |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
| Grade | 2205 |
| Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
| Standard: | ASTM，AISI，JIS，GB， DIN，EN |
| Surface: | BA，2B，NO.1，NO.4，4K，HL，8K |
| Certification: | ISO, SGS，BV |
| Technique: | Cold Rolled Hot Rolled |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
Equivalent Grades of Duplex Steel Sheets & Plates :
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex 2205 | S31803 | 1.4462 |
Chemical Composition of Duplex Steel Sheets & Plates :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex Steel S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21 – 23 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties of Duplex Steel Sheets & Plates :
| Grade | YS (MPa) | UTS (MPa) | % Elongation | Hardness(BHN) |
|---|---|---|---|---|
| 2205 | 450 min. | 655 min. | 25 min. | 293 max. |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Duplex Steel Sheets & Plates :
| Sheet & Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
ASTM A240 Duplex Steel Sheet & Plate Imperial Dimensions :
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
Thickness Chart of Duplex Steel Sheets & Plates :
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Weight Chart of Duplex Steel Sheets & Plates :
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Weight Per Square Meter of Duplex Steel Sheets & Plates :
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
Weight – Imperial Units of Duplex Steel Sheets & Plates :
| Nominal Size Thickness (inches) |
Weight (lb/ft2) |
|---|---|
| 3/16 | 7.65 |
| 1/4 | 10.2 |
| 5/16 | 12.8 |
| 3/8 | 15.3 |
| 7/16 | 17.9 |
| 1/2 | 20.4 |
| 9/16 | 22.9 |
| 5/8 | 25.5 |
| 11/16 | 28.1 |
| 3/4 | 30.6 |
| 13/16 | 33.2 |
| 7/8 | 35.7 |
| 1 | 40.8 |
| 1 1/8 | 45.9 |
| 1 1/4 | 51.0 |
| 1 3/8 | 56.1 |
| 1 1/2 | 61.2 |
| 1 5/8 | 66.3 |
| 1 3/4 | 71.4 |
| 1 7/8 | 76.5 |
| 2 | 81.6 |
| 2 1/8 | 86.7 |
| 2 1/4 | 91.8 |
| 2 1/2 | 102 |
| 2 3/4 | 112 |
| 3 | 122 |
| 3 1/4 | 133 |
| 3 1/2 | 143 |
| 3 3/4 | 153 |
| 4 | 163 |
| 4 1/4 | 173 |
| 4 1/2 | 184 |
| 5 | 204 |
| 5 1/2 | 224 |
| 6 | 245 |
| 6 1/2 | 265 |
| 7 | 286 |
| 7 1/2 | 306 |
| 8 | 326 |
| 9 | 367 |
| 10 | 408 |
Weight – Metric Units of Duplex Steel Sheets & Plates :
| Plate Thickness (mm) |
Weight (kg/m2) |
|---|---|
| 1.6 | 12.6 |
| 2.0 | 15.7 |
| 2.5 | 19.6 |
| 3 | 23.6 |
| 3.2 | 25.1 |
| 4 | 31.4 |
| 5 | 39.3 |
| 6 | 47.1 |
| 8 | 62.8 |
| 10 | 78.5 |
| 12.5 | 98.1 |
| 15 | 118 |
| 20 | 157 |
| 22.5 | 177 |
| 25 | 196 |
| 30 | 236 |
| 32 | 251 |
| 35 | 275 |
| 40 | 314 |
| 45 | 353 |
| 50 | 393 |
| 55 | 432 |
| 60 | 471 |
| 65 | 510 |
| 70 | 550 |
| 75 | 589 |
| 80 | 628 |
| 90 | 707 |
| 100 | 785 |
| 110 | 864 |
| 120 | 942 |
| 130 | 1051 |
| 150 | 1178 |
| 160 | 1256 |
| 180 | 1413 |
| 200 | 1570 |
| 250 | 1963 |
Duplex SteelType Sheets & Plates
Duplex Steel Price Per Kg (As per demand and manufacturer):
| Price of Duplex Steel Sheets & Plates manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Duplex Steel Sheet | 280 - 300 | 3.25 - 3.49 | 13.51 - 14.47 |
| Duplex Steel Plate | 300 - 350 | 3.49 - 4.07 | 14.47 - 16.88 |
| Duplex Steel Sheet manufacturer | 290 - 310 | 3.35 - 3.59 | 13.61 - 14.57 |
| Duplex Steel Plate manufacturer | 310 - 360 | 3.59 - 4.17 | 14.57 - 16.98 |
