Incoloy UNS N08800 Round Bar | Incoloy DIN 1.4876 Round Bars

As main exporters, suppliers and manufacturer, Ranflex Metals offers our clienteles a broad variety of Inconel 800 round Bars in India. Heavy obligation lubricants will have to be used to scale back galling in all forming operations. Alloy 800H round Bars is totally resistant to corrosion, even in acidic environment. Alloy 800HT Rods is especially priceless for high-temperature apparatus in the petrochemical enterprise on account that the alloy would not form the embrittling sigma segment after very long time publicity at 1385 °C (2525 °F).These Nickel 800 round Bars are used for heat exchangers, pressure vessels, Dampers, Nitric acid catalyst helps, Reformer outlet pigtails and manifold, and more. We also offer to our clienteles in personalized sizes and specifications.

We satisfaction ourselves on being at the forefront of innovation in both product strains and after revenue offerings. This is why we will be able to always improve our products and offerings to satisfy market expectations and demands. We are reputed as a best excellent Incoloy 800 ASTM B408 round bar provider within the industry.

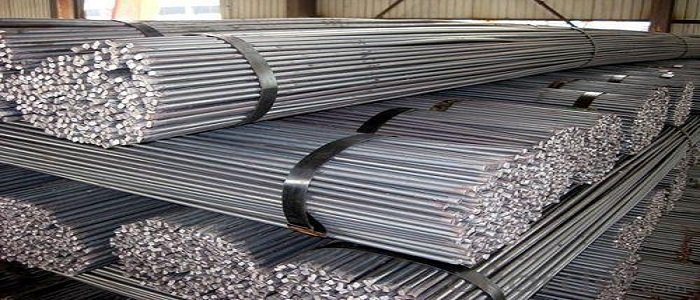

Top renowned manufacturers & suppliers of Incoloy 800 ASTM B408 Round Bar, ASTM B366 ASTM A408 Bar & ASTM A408 Rod, Incoloy UNS N08800 Round Bar, and Alloy 800 Hex Bars Incoloy 800 ASTM B408 Round Bar, ASTM B407, ASTM B163, ASTM B358, ASTM B515, ASTM B409, ASTM B366 ASTM A408 Bar & ASTM A408 Rod

Application Incoloy 800 Round Bars and Rods :-

Processing plant for sulphuric, phosphoric and acetic acids.
Pulp and paper processing.
Components in gas scrubbing plants.
Seawater cooling equipment.
Oil refinery components.
Wires in electrostatic precipitators.

Special Features :-

Each bundle covered with plastic for protection against extreme weather.
End of Incoloy 800 ASTM B408 Round Bar protected by plastic caps.
Bundles strapped with plastic strips.
Each radius of U-Bend tube separated by a separato.
Packaging list (laminated) placed with box/crate.

Specification of 800 Incoloy Round Bars :

Grade	Incoloy Round Bar
Incoloy Square bar size	4 to 100mm
Incoloy Hollow Bar	32mm OD x 16mm ID to 250mm OD x 200mm ID)
Hot Rolled Steel Hex Bar size	2-100mm A/F
Incoloy Angle bar size	3mm20mm20mm~12mm100mm100mm
Incoloy Rectangles Size	33 x 30mm to 295 x 1066mm
Hot Rolled Steel Flat bar size	Thickness: 2 -100mm
Hot Rolled Steel Flat bar size	Width: 10 to 500mm
Incoloy Channel Bar	80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Incoloy Section	3.0 to 12.0mm thickness
Hot Rolled Steel Round bar size	Diameter: 3-~800mm
Incoloy Billet Size	1/2" to 495mm Diameter
Incoloy Round Bar Standard Dimensions	Diameter / Height: Incoloy Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches.
Incoloy Surface	Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Incoloy Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Hot Rolled Steel Technique	Incoloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Incoloy Condition	Hardened & tempered, annealed
Finish	Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Form	Incoloy Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc.
Processing	Bar cutting to 650mm

Equivalent Grades of Incoloy 800 Round Bars :

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T

Chemical Composition of 800 Incoloy Round Bars :

Grade	Ni	Cr	Fe	Mb	Ti	Cu	Mn	C	S	Al	Al + Ti
Incoloy 800	30.0 - 35.0	19.0 - 23.0	39.5 min	-	0.15 - 0.60	-	-	0.10 max	-	0.15 -0.60	3.15 - 4.15

Mechanical Properties of Incoloy 800 Round Bars :

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Physical Properties of Incoloy WERKSTOFF NR. 1.4876 :

DENSITY (G/CM 3)	DENSITY (LB/IN 3)	MELTING POINT (°C)	MELTING POINT (°F)
7 .94	0.287	1357 – 1385	2475 – 2525

Modern Equipments

Expert Engineers

Efficient Factories

Well Maintained

Theoretical Weight of Incoloy Flat Bars :

Dimension Chart of ASME SB408 Incoloy 800 Square Bar :

Diameter or Width (mm)	Weight per meter		Sectional Area		Perimeter
Diameter or Width (mm)	Square (kg)	Round (kg)	Square (cm²)	Round (cm²)	Square (cm)	Round (cm)
5.0	0.20	0.15	0.25	0.20	2.0	1.57
5.5	0.24	0.19	0.30	0.24	2.2	1.78
6.0	0.28	0.22	0.36	0.28	2.4	1.88
7.0	0.38	0.30	0.49	0.38	2.8	2.20
8.0	0.50	0.39	0.64	0.50	3.2	2.51
9.0	0.64	0.50	0.81	0.64	3.6	2.83
10	0.73	0.63	1.00	0.79	4.0	3.14
11	0.95	0.75	1.21	0.95	4.4	3.46
12	1.13	0.89	1.44	1.13	4.8	3.77
14	1.54	1.21	1.96	1.54	5.6	4.40
16	2.01	1.58	2.56	2.01	6.4	5.03
18	2.54	2.00	3.24	2.54	7.2	5.65
20	3.14	2.47	4.00	3.14	8.0	6.28
22	3.80	2.98	4.84	3.80	8.8	6.91
25	4.91	3.85	6.25	4.91	10.0	7.85
28	6.15	4.83	7.84	6.16	11.2	8.80
32	8.04	6.31	10.24	8.04	12.8	10.05
36	10.17	7.99	12.96	10.18	14.4	11.31
40	12.56	9.86	16.00	12.57	16.0	12.57
45	15.90	12.49	20.25	15.90	18.0	14.14
50	19.62	15.41	25.00	19.64	20.0	15.71
56	24.62	19.34	31.36	24.63	22.4	17.59
63	31.16	24.47	36.69	31.17	25.2	19.79
71	39.57	31.08	50.41	39.59	28.4	22.31
80	50.24	39.46	64.00	50.27	32.0	25.13

Size of Incoloy Round Bars :

Incoloy 800 Hex Bar Sizes :

Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)
7 x 7	0.337	19 x 19	2.479	38 x 38	9.916
8 x 8	0.44	20 x 20	2.747	40 x 40	10.988
9 x 9	0.556	21 x 21	3.029	42 x 42	12.114
10 x 10	0.687	22 x 22	3.324	45 x 45	13.906
11 x 11	0.831	24 x 24	3.956	48 x 48	15.822
12 x 12	0.989	25 x 25	4.292	50 x 50	17.168
13 x 13	1.161	26 x 26	4.642	53 x 53	19.29
14 x 14	1.346	28 x 28	5.384	55 x 55	20.774
15 x 15	1.545	30 x 30	6.181	60 x 60	24.723
16 x 16	1.758	32 x 32	7.032	65 x 65	29.015
17 x 17	1.985	34 x 34	7.939	70 x 70	33.65
18 x 18	2.225	36 x 36	8.9	75 x 75	38.629

Incoloy 800 Round Bar Sizes :

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Polish	3.00 - 75.00	1/8 - 3.00	h8-h9-h10-h11
Cold Drawn and Ground	10.00 - 75.00	5/6 - 2.50	h8-h9-h10-h11
Peeled and Polished	40.00 - 150.00	1.50 - 6.00	h11, h11-DIN 1013
Peeled and Ground	20.00 - 50.00	3/4 - 2.00	h9-h10-h11

Incoloy Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0	45.0
6.0	50.0
7.0	55.0
8.0	60.0
9.0	65.0
10.0	70.0
12.0	75.0
16.0	80.0
20.0	90.0
25.0	100.0
30.0	130.0
35.0	160.0
40.0	200.0

SW 13 800 Incoloy Hex Rod
SW 17 800 Incoloy Hex Rod
SW 19 800 Incoloy Hex Rod
SW 24 800 Incoloy Hex Rod
SW 27 800 Incoloy Hex Rod

Incoloy 800 Flat Bar Sizes :

Flat bar sizes in mm	Flat Bar Size (inch)	Flat Bar Thickness (mm)	Flat Bar Thickness (in Inches)
22	7/8	17 & 18	2/3 - 5/7
25	1	5 to 20	3/16 - 4/5
30	1-3/16	5 to 20	3/16 - 4/5
32	1-1/4	6 to 20	1/4 - 4/5
35	1-3/8	5 to 20	3/16 - 3/16
40	1-4/7	5 to 25	3/16 - 1
45	1-7/9	5 to 25	3/16 - 1
47	1-6/7	17,25 & 32	2/3, 1 & 1-1/4
50	2	5 to 32	3/16 - 1-1/4
55	2-1/16	5 to 25	3/16 - 1
57	2-1/4	32	1-1/4
60	2-3/8	5 to 35	3/16 - 1-3/8
63	2-1/2	10 to 30	3/8 - 1-3/16
65	2-5/9	10 to 30 & 35	3/8 - 1-3/16, & 1-3/8
70	2-3/4	6 to 25 & 40	1/4 - 1, & 1-4/7
75	3	8 to 25	5/16 - 1
80	3-1/8	8 to 20	5/16 - 4/5
90	3-1/2	8 to 20	5/16- 4/5
100	4	8, 10, 12	5/16, 3/8, 1/2

Incoloy 800 Hollow Bar Sizes :

OD = outside diameter, ID = inside diameter

Size		Chucked true to OD				Chucked true to ID
OD, mm	ID, mm	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.
32	20	31	21.9	1.220	0.862	30	21	1.185	0.827
32	16	31	18	1.220	0.709	30	17	1.181	0.669
36	25	35	26.9	1.378	1.059	34.1	26	1.343	1.024
36	20	35	22	1.378	0.866	34	21	1.339	0.827
36	16	35	18.1	1.378	0.713	33.9	17	1.335	0.669
40	28	39	29.9	1.535	1.177	38.1	29	1.500	1.142
40	25	39	27	1.535	1.063	38	26	1.496	1.024
40	20	39	22.1	1.535	0.870	37.9	21	1.492	0.827
45	32	44	33.9	1.732	1.335	43.1	33	1.697	1.299
45	28	44	30	1.732	1.181	43	29	1.693	1.142
45	20	44	22.2	1.732	0.874	42.8	21	1.685	0.827
50	36	49	38	1.929	1.496	48	37	1.890	1.457
50	32	49	34.1	1.929	1.343	47.9	33	1.886	1.299
50	25	49	27.2	1.929	1.071	47.8	26	1.882	1.024
56	40	55	42	2.165	1.654	54	41	2.126	1.614
56	36	55	38.1	2.165	1.500	53.9	37	2.122	1.457
56	28	55	30.3	2.165	1.193	53.7	29	2.114	1.142
63	50	62	51.9	2.441	2.043	61.1	51	2.406	2.008
63	45	62	47	2.441	1.850	61	46	2.402	1.811
63	40	62	42.2	2.441	1.661	60.8	41	2.394	1.614
63	36	62	38.3	2.441	1.508	60.7	37	2.390	1.457
63	32	62	34.4	2.441	1.354	60.6	33	2.386	1.299
71	56	69.9	58	2.752	2.283	68.9	57	2.713	2.244
71	45	69.9	47.3	2.752	1.862	68.6	46	2.701	1.811
71	40	69.9	42.4	2.752	1.669	68.5	41	2.697	1.614
71	36	69.9	38.5	2.752	1.516	68.4	37	2.693	1.457
75	60	73.8	62	2.906	2.441	72.8	61	2.866	2.402
75	50	73.8	52.2	2.906	2.055	72.6	51	2.858	2.008
75	40	73.8	42.5	2.906	1.673	72.3	41	2.846	1.614
80	63	78.8	65	3.102	2.559	77.8	64	3.063	2.520
80	50	78.8	52.4	3.102	2.053	77.4	51	3.047	2.008
80	45	78.8	47.5	3.102	1.870	77.3	46	3.043	1.811
80	40	78.8	42.6	3.102	1.677	77.2	41	3.039	1.614
85	67	83.7	69.1	3.295	2.720	82.6	68	3.252	2.677
85	55	83.7	57.4	3.295	2.260	82.3	56.0	3.240	2.205
85	45	83.7	47.6	3.295	1.874	82.1	46.0	3.232	1.811
90	71	88.6	73.1	3.488	2.878	87.6	72.1	3.449	2.839
90	63	88.6	65.3	3.488	2.571	87.3	64.0	3.437	2.520
90	56	88.6	58.5	3.488	2.303	87.1	57.0	3.429	2.244
90	50	88.6	52.6	3.488	2.071	87.0	51.0	3.425	2.008
95	75	93.5	77.3	3.681	3.041	92.4	76.2	3.641	2.997
95	67	93.5	69.3	3.681	2.728	92.2	68.0	3.630	2.677
95	50	93.5	52.7	3.681	2.075	91.8	51.0	3.614	2.008
100	80	98.5	82.3	3.878	3.240	97.4	81.2	3.835	3.197
100	71	98.5	73.4	3.878	2.890	97.2	72.1	3.827	2.839
100	63	98.5	65.5	3.878	2.579	97.0	64.0	3.819	2.520
100	56	98.5	58.7	3.878	2.311	96.8	57.0	3.811	2.244
106	80	104.4	82.5	4.110	3.248	103.1	81.2	4.059	3.197
106	71	104.4	73.5	4.110	2.894	103.0	72.1	4.055	2.839
106	63	104.4	65.7	4.110	2.587	102.7	64.0	4.043	2.520
106	56	104.4	58.9	4.110	2.319	102.5	57.0	4.035	2.244
112	90	110.3	92.5	4.343	3.642	109.2	91.4	4.299	3.598
112	80	110.3	82.6	4.343	3.252	108.9	81.2	4.287	3.197
112	71	110.3	73.7	4.343	2.902	108.7	72.1	4.280	2.839
112	63	110.3	65.8	4.343	2.591	108.5	64.0	4.272	2.520
118	90	116.2	92.7	4.575	3.650	114.9	91.4	4.524	3.598
118	80	116.2	82.8	4.575	3.260	114.6	81.2	4.512	3.197
118	71	116.2	73.8	4.575	2.906	114.5	72.1	4.508	2.839
118	63	116.2	66.0	4.575	2.598	114.2	64.0	4.496	2.520
125	100	123.1	102.7	4.846	4.043	121.9	101.5	4.799	3.996
125	90	123.1	92.8	4.846	3.654	121.7	91.4	4.791	3.598
125	80	123.1	82.9	4.846	3.264	121.4	81.2	4.780	3.197
125	71	123.1	74.0	4.846	2.913	121.3	72.1	4.772	2.839
132	106	130.0	108.8	5.118	4.283	128.8	107.6	5.071	4.236
132	90	130.0	93.0	5.118	3.661	128.4	91.4	5.055	3.598
132	80	130.0	83.1	5.118	3.272	128.1	81.2	5.043	3.197
132	71	130.0	74.2	5.118	2.921	121.2	72.1	5.035	2.839
140	112	137.9	115	5.429	4.528	136.6	113.7	5.378	4.476
140	100	137.9	103.1	5.429	4.059	136.3	101.5	5.366	3.996
140	90	137.9	93.2	5.429	3.669	136.1	91.4	5.358	3.598
140	80	137.9	83.3	5.429	3.280	135.8	81.2	5.346	3.197
150	125	147.7	128.1	5.815	5.043	146.5	126.9	5.768	4.996
150	106	147.7	109.3	5.815	4.303	146	107.6	5.748	4.236
150	95	147.7	98.4	5.815	3.874	145.7	96.4	5.736	3.795
150	80	147.7	83.6	5.815	3.291	145.3	81.2	5.720	3.197
160	132	157.6	135.3	6.205	5.327	156.3	134	6.154	5.276
160	122	157.6	125.4	6.205	4.937	156	123.8	6.142	4.874
160	112	157.6	115.5	6.205	4.547	155.8	113.7	6.134	4.476
160	90	157.6	94.0	6.205	3.701	155.2	91.4	6.110	3.598
170	140	167.4	143.5	6.591	5.650	166	142.1	6.535	5.594
170	130	167.4	133.6	6.591	5.260	165.8	132	6.528	5.197
170	128	167.4	131.6	6.591	5.181	165.7	130	6.524	5.118
170	118	167.4	121.7	6.591	4.791	165.5	119.8	6.516	4.717
170	106	167.4	109.8	6.591	4.323	165.2	107.6	6.504	4.236
170	100	167.4	103.9	6.591	4.091	165	101.5	6.496	3.996
180	150	177.3	153.6	6.980	6.047	176	152.3	6.929	5.996
180	140	177.3	143.7	6.980	5.657	175.7	142.1	6.917	5.594
180	125	177.3	128.9	6.980	5.075	175.3	126.9	6.902	4.996
180	100	177.3	104.1	6.980	4.098	174.7	101.5	6.878	3.996
190	160	187.1	163.8	7.366	6.449	185.7	162.4	7.311	6.394
190	150	187.1	153.9	7.366	6.059	185.5	152.3	7.303	5.996
190	132	187.1	136	7.366	5.354	185.1	134	7.287	5.276
200	170	197.0	173.9	7.756	6.846	195.6	172.6	7.701	6.795
200	160	197.0	164	7.756	6.457	195.4	162.4	7.693	6.394
200	150	197.0	154.1	7.756	6.067	195.2	152.3	7.685	5.996
200	140	197.0	144.2	7.756	5.677	194.9	142.1	7.673	5.594
212	170	208.8	174.2	8.220	6.858	207.2	172.6	8.157	6.795
212	150	208.8	154.4	8.220	6.079	206.6	152.3	8.133	5.997
212	130	208.8	134.6	8.220	5.299	206.2	132	8.118	5.197
224	180	220.6	184.4	8.685	7.260	218.9	182.7	8.618	7.193
224	140	220.6	144.8	8.685	5.701	217.9	142.1	8.579	5.594
236	190	232.4	194.6	9.150	7.661	230.7	192.9	9.083	7.594
236	150	232.4	155.0	9.150	6.102	229.7	152.3	9.043	5.996
250	200	246.2	204.9	9.693	8.067	244.3	203.0	9.618	7.992
275	200	268.9	205.4	10.587	8.087	266.5	203.0	10.492	7.992

Incoloy 800 Square Bar Sizes :

Size (mm)	Weight per metre (Kg)
12 x 12	1.14
16 x 16	2.02
20 x 20	3.16
25 x 25	4.94
30x30	7.11
40 x 40	12.60
50 x 50	19.80

Weight Chart of ASME SB408 Incoloy 800 Square Bar :

Diameter or Width (mm)	Weight per meter		Sectional Area		Perimeter
Diameter or Width (mm)	Square (kg)	Round (kg)	Square (cm²)	Round (cm²)	Square (cm)	Round (cm)
5.0	0.20	0.15	0.25	0.20	2.0	1.57
5.5	0.24	0.19	0.30	0.24	2.2	1.78
6.0	0.28	0.22	0.36	0.28	2.4	1.88
7.0	0.38	0.30	0.49	0.38	2.8	2.20
8.0	0.50	0.39	0.64	0.50	3.2	2.51
9.0	0.64	0.50	0.81	0.64	3.6	2.83
10	0.73	0.63	1.00	0.79	4.0	3.14
11	0.95	0.75	1.21	0.95	4.4	3.46
12	1.13	0.89	1.44	1.13	4.8	3.77
14	1.54	1.21	1.96	1.54	5.6	4.40
16	2.01	1.58	2.56	2.01	6.4	5.03
18	2.54	2.00	3.24	2.54	7.2	5.65
20	3.14	2.47	4.00	3.14	8.0	6.28
22	3.80	2.98	4.84	3.80	8.8	6.91
25	4.91	3.85	6.25	4.91	10.0	7.85
28	6.15	4.83	7.84	6.16	11.2	8.80
32	8.04	6.31	10.24	8.04	12.8	10.05
36	10.17	7.99	12.96	10.18	14.4	11.31
40	12.56	9.86	16.00	12.57	16.0	12.57
45	15.90	12.49	20.25	15.90	18.0	14.14
50	19.62	15.41	25.00	19.64	20.0	15.71
56	24.62	19.34	31.36	24.63	22.4	17.59
63	31.16	24.47	36.69	31.17	25.2	19.79
71	39.57	31.08	50.41	39.59	28.4	22.31
80	50.24	39.46	64.00	50.27	32.0	25.13

Type of Incoloy 800 Round Bar

UNS N08800 Bright Bar

Incoloy 800 Hex Bar

B408 Incoloy 800 Square Bar

UNS N08800 Rectangular Bar

ASTM B408 Incoloy 800 Flat Bars

DIN 1.4876 Polished Bar

Grade 800 Incoloy Threaded Bar

Incoloy 800 Price Per Kg (As per demand and manufacturer):

Description	Per Unit (INR)	Price in USD	Pricein EURO
Incoloy Bright Bars Grade Aisi 800 Bright Bars	125.38	2.08	1.78
Incoloy Bright Bars Incoloy 800 Shape Round	118.38	1.98	1.70
Grade Aisi 800 Bright Rods Of Incoloy	125.38	2.08	1.78
Incoloy Bright Bars grade 800 Shape Round	118.38	1.98	1.70
Grade Aisi 800 Round Bars	124.38	2.08	1.70
Grade Aisi 800 Bars & Rods Of Incoloy	135.38	2.22	2.88

People also search
City we Deliver
Country we export

Incoloy 800 ASTM B408 Round Bar

Table of Content
