Inconel 600/ 601/ 625/ 718 Alloy Plates & Sheets

Table of Content

  •   What is Inconel Alloy Sheets & Plates
  •   Specification of Inconel Alloy Sheets & Plates
  •   Equivalent Grades of Inconel Alloy Sheets & Plates
  •   Chemical Composition of Inconel Alloy Sheets & Plates
  •   Mechanical Properties of Inconel Alloy Sheets & Plates
  •   Dimensions of Inconel Alloy Sheets & Plates
  •   Thickness Chart of Inconel Alloy Sheets & Plates
  •   Weight Chart of Inconel Alloy Sheets & Plates
  •   Inconel Alloy Type Sheets & Plates
  •   Inconel Alloy Price Per Kg (As per demand and manufacturer)
  •   People also Search for Inconel Alloy Sheets & Plates
  •   Export Destinations
  •   Domestic Supply

    • Ranflex Metals are one of the main Manufacturers, Supplier and Exporters of Inconel 600/601/625/718 Alloy Plates & Sheets. Ranflex Metals offer quality Inconel 600/601/625/718 Sheet and Plates to our clients over the globe. These Inconel 600/601/625/718 Sheet and Plates highlights astounding disintegration resistance, high versatility level and sturdiness. Further, these are available in different sizes as indicated by the requirements of our clients.

    Inconel Alloy Sheets & Plates

    Being an especially convincing, slope and fast moving affiliation, we are greatly progressive in giving an expansive show of Inconel 600/601/625/718 Sheet and Plates. As per the ASTM standards, these mechanical Inconel 600/601/625/718 Sheet and Plates are manufactured by our industry-stars with a particular final objective to make a predominant quality degree. Offered lifted quality cutting edge Inconel 600/601/625/718 Sheets and Plates are made available in different assessments to meet overall quality gauges.

    Specification of Inconel Alloy Sheets & Plates :

    Specifications: ASTM B168 / ASME SB168
    Thickness: 4 mm To 100 mm
    Length: 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
    Width: 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
    Grade 600/ 601/ 625/ 718
    Application Building industry,architectural decoration,elevators,building doors,panels and so on.
    Standard: ASTM，AISI，JIS，GB， DIN，EN
    Surface: BA，2B，NO.1，NO.4，4K，HL，8K
    Certification: ISO, SGS，BV
    Technique: Cold Rolled Hot Rolled
    Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
    Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils

    Equivalent Grades of Inconel Alloy Sheets & Plates :

    STANDARD UNS WERKSTOFF NR. AFNOR GOST OR BS JIS EN
    Inconel 600 N06600 2.4816 NC15FE11M МНЖМц 28-2,5-1,5 ЭИ868 NA 13 NCF 600 NiCr15Fe
    Inconel 601 N06601 2.4851 NC23FeA XH60BT ЭИ868 NA 49 NCF 601 NiCr23Fe
    Inconel 625 N06625 2.4856 NC22DNB4M ХН75МБТЮ ЭИ602 NA 21 NCF 625 NiCr22Mo9Nb
    Inconel 718 N07718 2.4668 - - - - NCF 718 -

    Chemical Composition of Inconel Alloy Sheets & Plates :

    Grade Ni Fe C Mn Si Cu Cr S Mo Co Al Ti Nb
    600 72.0 min 6.0 - 10.0 0.15 max 1.0 max 0.5 max 0.5 max 14.0 - 17.0 0.015 max - - - - -
    601 58.0 – 63.0 Balance 0.10 max 1.0 max 0.50 max 1.0 max 21.0 – 25.0 0.015 max 8.0-10.0 - 1.0 – 1.7 - -
    625 58.0 max 5.0 max .10 max .50 max .50 max - 20.0 - 23.0 .015 max 8.0 - 10.0 1.0 max .40 max .40 max 3.15 - 4.15
    718 50 - 55 - 0.08 max 0.35 max 0.35 max 0.3 max 17 - 21 .015 max 2.8 - 3.3 1.0 max - - -

    Mechanical Properties of Inconel Alloy Sheets & Plates :

    Mechanical properties Tensile, min, ksi[MPa] Yield, min, ksi[MPa] Elongation, %(min)
    Inconel 600 80[550] 35[240] 30
    Inconel 601 80[552] 30[205] 30
    Inconel 625 100[690] 40[276] 30
    Inconel 718 185[1275] 150[1034] 12

    Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Inconel Alloy Sheets & Plates :

    Inconel Alloy Sheets & Plates dimensions

    Sheet & Plate Surface finish Thickness (mm) Width (max mm)
    2B – Cold rolled, heat treated, pickled, skin passed Sheet 0.25–8.0 2032
    2D – Cold rolled, heat treated, pickled Sheet 0.4–6.35 1524
    2E – Cold rolled, heat treated, mechanically descaled plate 0.4–8.0 2032
    2R – Cold rolled, bright annealed plate 0.25–3.5 1524
    2H – Work hardened plate 0.4–6.35 1524
    Polished, brushed plate 0.5–4.0 1524
    ASTM A240Inconel AlloySheet & Plate Imperial Dimensions :
    Sheet & Plate Surface finish Gauge (in) Width (max in)
    2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
    2D – Cold rolled, heat treated, pickled plate 12–24 60
    BA Mexinox only 18–28 48
    Polished Sheet (not brushed) 11–24 60
    Temper rolled Sheet Mexinox only 13–29 48

    Thickness Chart of Inconel Alloy Sheets & Plates :

    Thickness Thickness Size Range Surface Area per Unit weight Approx Weight per Sheet
    inches mm   lbs/ft² kg/m² lbs kg
    0.015 0.381 36 x 96 0.630 3.07566 15.12 6.84936
    0.015 0.381 36 x 120 0.630 3.07566 18.90 8.5617
    0.0178 0.45212 36 x 96 0.756 3.690792 18.15 8.22195
    0.0178 0.45212 36 x 120 0.756 3.690792 22.68 10.27404
    0.0178 0.45212 48 x 96 0.756 3.690792 24.19 10.95807
    0.0178 0.45212 48 x 120 0.756 3.690792 30.24 13.69872
    0.0235 0.5969 30 x 96 1.008 4.921056 20.16 9.13248
    0.0235 0.5969 30 x 120 1.008 4.921056 25.20 11.4156
    0.0235 0.5969 36 x 96 1.008 4.921056 24.19 10.95807
    0.0235 0.5969 36 x 120 1.008 4.921056 30.24 13.69872
    0.0235 0.5969 36 x 144 1.008 4.921056 36.29 16.43937
    0.0235 0.5969 48 x 96 1.008 4.921056 32.26 14.61378
    0.0235 0.5969 48 x 120 1.008 4.921056 40.32 18.26496
    0.0235 0.5969 48 x 144 1.008 4.921056 48.39 21.92067
    0.0291 0.73914 30 x 96 1.260 6.15132 25.20 11.4156
    0.0291 0.73914 30 x 120 1.260 6.15132 31.50 14.2695
    0.0291 0.73914 36 x 96 1.260 6.15132 30.24 13.69872
    0.0291 0.73914 36 x 120 1.260 6.15132 37.80 17.1234
    0.0291 0.73914 36 x 144 1.260 6.15132 45.37 20.55261
    0.0291 0.73914 48 x 96 1.260 6.15132 40.32 18.26496
    0.0291 0.73914 48 x 120 1.260 6.15132 50.41 22.83573
    0.0291 0.73914 48 x 144 1.260 6.15132 60.49 27.40197
    0.0355 0.9017 30 x 96 1.512 7.381584 30.24 13.69872
    0.0355 0.9017 30 x 120 1.512 7.381584 37.80 17.1234
    0.0355 0.9017 36 x 96 1.512 7.381584 36.29 16.43937

    Weight Chart of Inconel Alloy Sheets & Plates :

    Plate Thickness (mm) Weight (kg/m) kg/meter (width 1200mm) kg/meter (width 1500mm) kg/meter (width 1800mm) kg/meter (width 2400mm)
    3 23.55 28.3 35.3 42.4 56.5
    4 31.4 37.7 47.1 56.5 75.4
    5 39.25 47.1 58.9 70.7 94.2
    6 47.1 56.5 70.7 84.8 113
    8 62.8 75.4 94.2 113 150.7
    10 78.5 94 118 141 188
    12 94.2 113 141 170 226
    16 125.6 151 188 226 301
    20 157 188 236 283 377
    22 172.7 207 259 311 415
    25 196.25 236 294 353 471
    28 219.8 264 330 396 528
    32 251.2 301 377 452 603
    36 282.6 339 424 509 678
    40 314 377 471 565 754
    45 353.25 424 530 636 848
    50 392.5 471 589 707 942
    55 431.75 518 648 777 1036
    60 471 565 707 848 1130
    65 510 612 765 918 1224
    70 549.5 659 824 989 1319
    75 588.75 707 883 1060 1413
    80 628 754 942 1130 1507
    90 706.5 848 1060 1272 1696
    100 785 942 1178 1413 1884

    Weight Per Square Meter of Inconel Alloy Sheets & Plates :
    Size (mm) Weight per
    Sheet (Kg)    		 Size (mm) Weight per
    Sheet (Kg)
    2000 x1000 x 0.7 11.5 2500 x 1250 x 1.5 38.4
    2500 x1250 x 0.7 17.9 3000 x 1500 x 1.5 55.3
    2000 x1000 x 0.9 14.7 2000 x 1000 x 2.0 32.7
    2500 x1250 x 0.9 23.0 2500 x 1250 x 2.0 51.2
    2000 x1000 x 1.0 16.4 3000 x 1500 x 2.0 73.7
    2500 x1250 x 1.0 25.6 2000 x 1000 x 2.5 40.9
    3000 x1500 x 1.0 36.8 2500 x 1250 x 2.5 63.9
    2000 x1000 x 1.2 19.6 3000 x 1500 x 2.5 92.1
    2500 x1250 x 1.2 30.7 2000 x 1000 x 3.0 49.6
    3000 x1500 x 1.2 44.2 2500 x 1250 x 3.0 77.5
    2000 x1000 x 1.5 24.6 3000 x 1500 x 3.0 112.0

    Weight – Imperial Units of Inconel Alloy Sheets & Plates :
    Nominal Size Thickness
    (inches)    		 Weight
    (lb/ft2)
    3/16 7.65
    1/4 10.2
    5/16 12.8
    3/8 15.3
    7/16 17.9
    1/2 20.4
    9/16 22.9
    5/8 25.5
    11/16 28.1
    3/4 30.6
    13/16 33.2
    7/8 35.7
    1 40.8
    1 1/8 45.9
    1 1/4 51.0
    1 3/8 56.1
    1 1/2 61.2
    1 5/8 66.3
    1 3/4 71.4
    1 7/8 76.5
    2 81.6
    2 1/8 86.7
    2 1/4 91.8
    2 1/2 102
    2 3/4 112
    3 122
    3 1/4 133
    3 1/2 143
    3 3/4 153
    4 163
    4 1/4 173
    4 1/2 184
    5 204
    5 1/2 224
    6 245
    6 1/2 265
    7 286
    7 1/2 306
    8 326
    9 367
    10 408

    Weight – Metric Units of Inconel Alloy Sheets & Plates :
    Plate Thickness
    (mm)    		 Weight
    (kg/m2)
    1.6 12.6
    2.0 15.7
    2.5 19.6
    3 23.6
    3.2 25.1
    4 31.4
    5 39.3
    6 47.1
    8 62.8
    10 78.5
    12.5 98.1
    15 118
    20 157
    22.5 177
    25 196
    30 236
    32 251
    35 275
    40 314
    45 353
    50 393
    55 432
    60 471
    65 510
    70 550
    75 589
    80 628
    90 707
    100 785
    110 864
    120 942
    130 1051
    150 1178
    160 1256
    180 1413
    200 1570
    250 1963

    Inconel Alloy Type Sheets & Plates

    Inconel Alloy Sheets

    Inconel Alloy Sheet
    Inconel AlloyPlates

    Inconel Alloy Plate
    Inconel AlloyChequered Plate

    Inconel Alloy Chequered Plate


    Inconel AlloyShim Sheet

    Inconel Alloy Shim Sheet

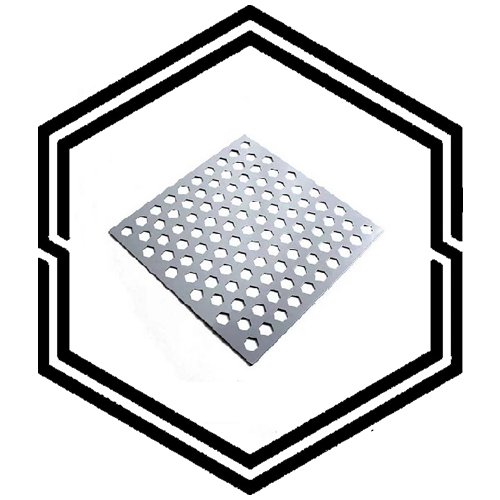

    Inconel AlloyPerforated Sheet

    Inconel Alloy Perforated Sheet
    Inconel AlloyClad Plate

    Inconel Alloy Clad Plate


    Inconel AlloyPrice Per Kg (As per demand and manufacturer):

    Price of Inconel Alloy Sheets & Plates manufacturer in India Price in USD (per kg) Price in Euro (per kg) Price in UAE Dirham (per kg)
    Inconel Alloy Sheet 280 - 300 3.25 - 3.49 13.51 - 14.47
    Inconel Alloy Plate 300 - 350 3.49 - 4.07 14.47 - 16.88
    Inconel Alloy Sheet manufacturer 290 - 310 3.35 - 3.59 13.61 - 14.57
    Inconel Alloy Plate manufacturer 310 - 360 3.59 - 4.17 14.57 - 16.98
