UNS S32750 Flange Stud bolt, Werkstoff Nr. 1.4410 Welding Stud bolt, Werkstoff Nr. 1.4410 Tap End Stud bolt, ASTM A479 Fully Threaded Stud bolt, Alloy 2507 Continuous Threaded Stud bolt, Super Duplex 2507 Flange Stud bolt.
Ranflex Metals are the leading manufacturer of high integrity Super Duplex 2507 Fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
Super Duplex 2507 Continuous Threaded Stud bolt exporter, UNS S32750 Double End Stud bolt stockiest, Alloy 2507 Tap End Stud bolt stockiest, Werkstoff Nr. 1.4410 Double End Stud bolt trader, ASME SA479 Double End Stud bolt supplier, Saf 2507 Flange Stud bolt dealer, ASTM A479 Flange Stud bolt exporter.
Our Super Duplex 2507 Fasteners product range includes Super Duplex 2507 Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws, Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
Ranflex Metals produces Super Duplex 2507 Fasteners in all grades of Super duplex, to customer specification.Alloy 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. If we do not have yourSuper Duplex 2507 Fasteners in stock (Inch or Metric) we can have these manufactured to your specification.
ASME SA479 Fully Threaded Stud bolt, Alloy 2507 Double End Stud bolt, Alloy 2507 Flange Stud bolt, Super Duplex 2507 Double End Stud bolt, ASME SA479 Continuous Threaded Stud bolt, Super Duplex 2507 Fully Threaded Stud bolt.
Specification of 2507 Super Duplex Stud Bolt :
| Specifications | ASTM A479 / A479, ASME SA479 / SA194 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Machine Screws Size | M1.6 - M12 |
| Stainless Steel Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Stud bolts Type | Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs |
Equivalent Grades of Super Duplex 2507 Stud Bolt :
| Alloy | Common Name | Related Specification | ||
|---|---|---|---|---|
| European | UNS | ASTM/ASME | ||
| Alloy 2507 | SAF 2507 ® | 1.4410 | S32750 | F53 |
Chemical Composition of 2507 Super Duplex Stud Bolt :
| Element | EN. NO. | F. NO. | C | CR | MN | MO | N | NI | P | S | SI | W | CU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2507 (S32750) |
1.4410 | F-53 | 0.03 | 24.0-26.0 | 1.20 MAX | 3.0-5.0 | 0.24-0.30 | 6.0-8.0 | 0.035 MAX | 0.020 MAX | 0.8 MAX | - | 0.5 MAX |
Mechanical Properties of Super Duplex 2507 Stud Bolt :
| Grade | Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) |
Hardness Rockwell C (HR C) |
|---|---|---|---|---|
| UNS-S 32750 | 795 | 550 | 15 | 32max |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4507 :
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.8 g/cm3 | 0.281 lb/in3 |
| Melting point | 1350°C | 2460°F |
Werkstoff Nr. 1.4410 Double End Stud bolt distributor, ASME SA479 Tap End Stud bolt wholesaler, Super Duplex 2507 Continuous Threaded Stud bolt distributor, ASTM A479 Flange Stud bolt stockiest, Werkstoff Nr. 1.4410 Double End Stud bolt dealer, Super Duplex 2507 Continuous Threaded Stud bolt dealer.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Stud Bolt 2507 Super Duplex :
Looking for 2507 Super Duplex Stud Bolt? Ranflex Metals is a top-class manufacturer of 2507 Super Duplex screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 2507 Super Duplex screws, 2507 Super Duplex bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Super Duplex 2507 Stud Bolt :
Super Duplex 2507 Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Super Duplex 2507 Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Size of Super Duplex 2507 Stud Bolt :
Super Duplex 2507 Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Super Duplex 2507 Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|

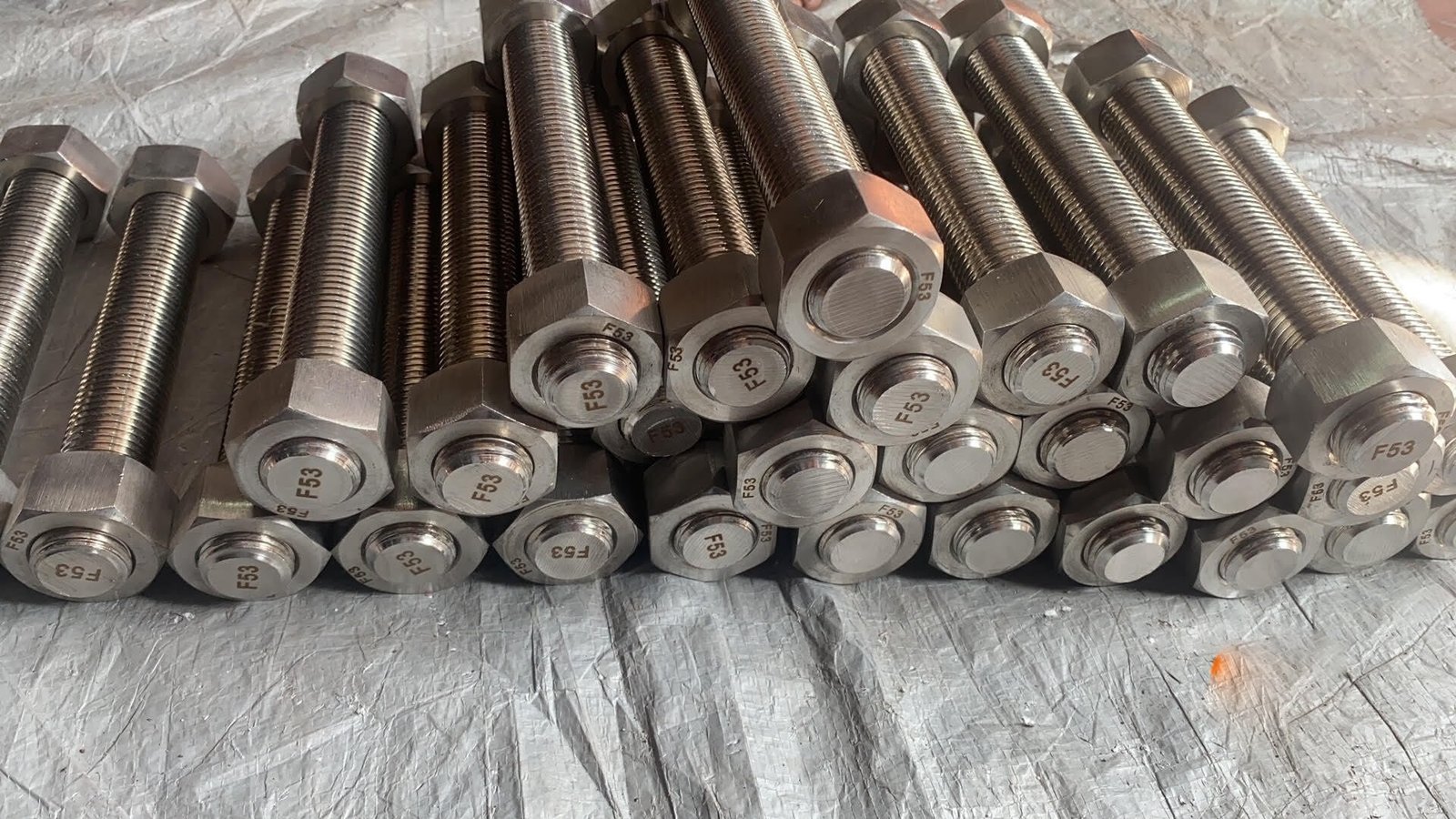

Super Duplex 2507 Type Stud Bolt
Stainless Steel Stud Bolt Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Super Duplex 2507 Price Per Kg (As per demand and manufacturer):
| Price of Super Duplex 2507 Stud Bolt manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Super Duplex Stainless Steel Stud Bolt Grade – 2507 | $6.84 | €6.54 | 22.86 UAE Dirham |
| Super Duplex Stainless Steel Double End Stud Bolt 2507 | $5.94 | €5.69 | 19.57 UAE Dirham |
| Super Duplex Stainless Steel Square Nuts Grade – 2507 | $3.94 | €3.76 | 12.25 UAE Dirham |
