Saf 2507 Hot Forged Fastener, Saf 2507 industrial Fastener, UNS S32750 high tensile Fastener, ASTM A479 high tensile Fastener, ASME SA479 high tensile Fastener, ASTM A479 industrial Fastener.
Ranflex Metals are the leading manufacturer of high integrity Super Duplex 2507 Fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
ASME SA479 Hot Forged Fastener weight calculator, UNS S32750 Hot Forged Fastener weight chart, UNS S32750 industrial Fastener price list, ASTM A479 industrial Fastener catalogue, UNS S32750 industrial Fastener dealer, Alloy 2507 industrial Fastener weight calculator, Saf 2507 Hot Forged Fastener exporter.

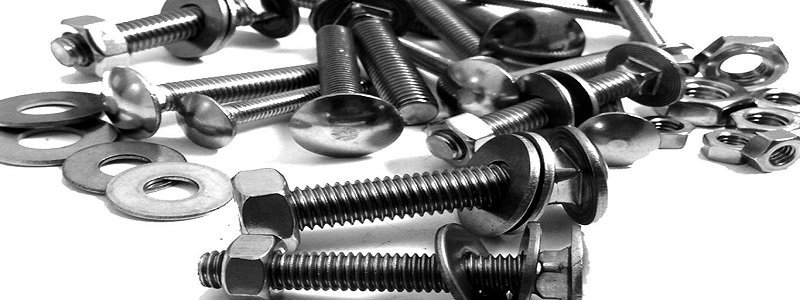

Our Super Duplex 2507 Fasteners product range includes Super Duplex 2507 Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws, Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
Ranflex Metals produces Super Duplex 2507 Fasteners in all grades of Super duplex, to customer specification.Alloy 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. If we do not have yourSuper Duplex 2507 Fasteners in stock (Inch or Metric) we can have these manufactured to your specification.
Super Duplex 2507 industrial Fastener, Werkstoff Nr. 1.4410 Hot Forged Fastener, Werkstoff Nr. 1.4410 industrial Fastener, Alloy 2507 industrial Fastener, ASTM A479 Hot Forged Fastener.
Specification of 2507 Super Duplex Fasteners :
| Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
Equivalent Grades of Super Duplex 2507 Fasteners :
| Alloy | Common Name | Related Specification | ||
|---|---|---|---|---|
| European | UNS | ASTM/ASME | ||
| Alloy 2507 | SAF 2507 ® | 1.4410 | S32750 | F53 |
Chemical Composition of 2507 Super Duplex Fasteners :
| Element | EN. NO. | F. NO. | C | CR | MN | MO | N | NI | P | S | SI | W | CU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2507 (S32750) |
1.4410 | F-53 | 0.03 | 24.0-26.0 | 1.20 MAX | 3.0-5.0 | 0.24-0.30 | 6.0-8.0 | 0.035 MAX | 0.020 MAX | 0.8 MAX | - | 0.5 MAX |
Mechanical Properties of Super Duplex 2507 Fasteners :
| Grade | Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) |
Hardness Rockwell C (HR C) |
|---|---|---|---|---|
| UNS-S 32750 | 795 | 550 | 15 | 32max |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4507 :
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.8 g/cm3 | 0.281 lb/in3 |
| Melting point | 1350°C | 2460°F |
ASME SA479 Hot Forged Fastener stockiest, ASTM A479 high tensile Fastener manufacturer, UNS S32750 high tensile Fastener weight calculator, ASME SA479 high tensile Fastener price list in India, Alloy 2507 industrial Fastener supplier, Werkstoff Nr. 1.4410 Hot Forged Fastener weight chart, UNS S32750 high tensile Fastener weight chart.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Fasteners 2507 Super Duplex :
Looking for 2507 Super Duplex fasteners? Ranflex Metals is a top-class manufacturer of 2507 Super Duplex screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 2507 Super Duplex screws, 2507 Super Duplex bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Super Duplex 2507 Fasteners :
Super Duplex 2507 Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Super Duplex 2507 Hex Nuts Dimensions Chart :
| Nominal Size Of Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Super Duplex 2507 Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Super Duplex 2507 Square Bolts Dimensions Chart :
| Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Super Duplex 2507 Heavy Hex Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Super Duplex 2507 Heavy Hex Nuts Dimensions :
| Nominal Size For Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Super Duplex 2507 Socket Head Cap Screw Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Super Duplex 2507 Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Super Duplex 2507 Flat Washer Dimensions Chart :
| Size Table | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (I.D.) Of (A) |
Outside Diameter (O.D.) Of (B) |
Thickness Of (C) |
I.D. Of (A) |
O.D. Of (B) |
Thickness Of (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
Size of Super Duplex 2507 FASTENER :
Super Duplex 2507 Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Super Duplex 2507 Screws Sizes :
| Screw Size | Body Dia | Minimum Thread Length | Hex Key Size | Head Dia | Head Height | Maximum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 3/8 | 0.05 | 0.096 | 0.06 | 5/8 |
| No. 1 | 0.073 | 3/8 | 1/16 | 0.118 | 0.073 | 7/8 |
| No. 2 | 0.086 | 1/2 | 5/64 | 0.14 | 0.086 | 7/8 |
| No. 3 | 0.099 | 1/2 | 5/64 | 0.161 | 0.099 | 7/8 |
| No. 4 | 0.112 | 11/16 | 3/32 | 0.183 | 0.112 | 11/8 |
| No. 5 | 0.125 | 11/16 | 3/32 | 0.205 | 0.125 | 1 |
| No. 6 | 0.138 | 11/16 | 7/64 | 0.226 | 0.138 | 11/8 |
| No. 8 | 0.164 | 3/4 | 9/64 | 0.27 | 0.164 | 11/4 |
| No. 10 | 0.19 | 15/16 | 5/32 | 0.312 | 0.19 | 13/8 |
| No. 12 | 0.216 | 15/16 | 5/32 | 0.345 | 0.216 | 11/4 |
| 1/4 | 0.250 | 15/16 | 3/16 | 3/8 | 1/4 | 11/2 |
| 5/16 | 0.3125 | 1-1/16 | 1/4 | 15/32 | 5/16 | 1-3/4 |
| 3/8 | 0.375 | 1-3/16 | 5/16 | 9/16 | 3/8 | 2 |
| 7/16 | 0.438 | 13/16 | 3/8 | 21/32 | 7/16 | 2-1/4 |
| 1/2 | 0.500 | 1-3/8 | 3/8 | 3/4 | 1/2 | 2-1/2 |
| 9/16 | 0.5625 | 1-5/8 | 7/16 | 27/32 | 9/16 | 2-7/16 |
| 5/8 | 0.625 | 1-5/8 | 1/2 | 15/16 | 5/8 | 3 |
| 3/4 | 0.750 | 1-7/8 | 5/8 | 11/8 | 3/4 | 3-1/2 |
| 7/8 | 0.875 | 2-1/16 | 3/4 | 15/16 | 7/8 | 3-3/4 |
| 1 | 1.000 | 2-1/4 | 3/4 | 11/2 | 1 | 4-1/2 |
| 1-1/8 | 1.125 | 2-13/16 | 7/8 | 111/16 | 1-1/8 | 4-21/32 |
| 1-1/4 | 1.250 | 3-1/8 | 7/8 | 17/8 | 1-1/4 | 5-3/32 |
| 1-1/2 | 1.500 | 3-3/4 | 1 | 21/4 | 1-1/2 | 6-5/64 |
| 1-3/4 | 1.750 | 4-3/8 | 11/4 | 25/8 | 1-3/4 | 7-1/8 |
| 2 | 2.000 | 5 | 11/2 | 3 | 2 | 8-7/64 |
Super Duplex 2507 Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|
Super Duplex 2507 Washer Sizes :
| Washer Size | Inner Dia, Basic [in] |
Basic Diameter [in] | Outer Dia, Basic [in] |
Series | Washer Thickness, Basic [in] |
|---|---|---|---|---|---|
| #0 | 0.078 | 0.0600 | 0.188 | - | 0.020 |
| #2 | 0.094 | 0.0860 | 0.250 | - | 0.020 |
| #4 | 0.125 | 0.1120 | 0.312 | - | 0.032 |
| #6 | 0.156 | 0.1380 | 0.375 | - | 0.049 |
| #8 | 0.188 | 0.1640 | 0.438 | - | 0.049 |
| #10 | 0.219 | 0.1900 | 0.500 | - | 0.049 |
| 1/4" | 0.281 | 0.2500 | 0.625 | Narrow | 0.065 |
| 1/4" | 0.312 | 0.2500 | 0.734 | Wide | 0.065 |
| 5/16" | 0.344 | 0.3125 | 0.688 | Narrow | 0.065 |
| 5/16" | 0.375 | 0.3125 | 0.875 | Wide | 0.083 |
| 3/8" | 0.406 | 0.3750 | 0.812 | Narrow | 0.065 |
| 3/8" | 0.438 | 0.3750 | 1.000 | Wide | 0.083 |
| 7/16" | 0.469 | 0.4375 | 0.922 | Narrow | 0.065 |
| 7/16" | 0.500 | 0.4375 | 1.250 | Wide | 0.083 |
| 1/2" | 0.531 | 0.5000 | 1.062 | Narrow | 0.095 |
| 1/2" | 0.562 | 0.5000 | 1.375 | Wide | 0.109 |
| 9/16" | 0.594 | 0.5625 | 1.156 | Narrow | 0.095 |
| 9/16" | 0.625 | 0.5625 | 1.469 | Wide | 0.109 |
| 5/8" | 0.656 | 0.6250 | 1.312 | Narrow | 0.095 |
| 5/8" | 0.688 | 0.6250 | 1.750 | Wide | 0.134 |
| 3/4" | 0.812 | 0.7500 | 1.469 | Narrow | 0.134 |
| 3/4" | 0.812 | 0.7500 | 2.000 | Wide | 0.148 |
| 7/8" | 0.938 | 0.8750 | 1.750 | Narrow | 0.134 |
| 7/8" | 0.938 | 0.8750 | 2.250 | Wide | 0.165 |
| 1" | 1.062 | 1.0000 | 2.000 | Narrow | 0.134 |
| 1" | 1.062 | 1.0000 | 2.500 | Wide | 0.165 |
| 1-1/8" | 1.250 | 1.1250 | 2.250 | Narrow | 0.134 |
| 1-1/8" | 1.250 | 1.1250 | 2.750 | Wide | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 2.500 | Narrow | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 3.000 | Wide | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 2.750 | Narrow | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 3.250 | Wide | 0.180 |
| 1-1/2" | 1.625 | 1.5000 | 3.000 | Narrow | 0.165 |
| 1-1/2" | 1.625 | 1.5000 | 3.500 | Wide | 0.180 |
| 1-5/8" | 1.750 | 1.6250 | 3.750 | - | 0.180 |
| 1-3/4" | 1.875 | 1.7500 | 4.000 | - | 0.180 |
| 1-7/8" | 2.000 | 1.8750 | 4.250 | - | 0.180 |
| 2" | 2.125 | 2.0000 | 4.500 | - | 0.180 |
Super Duplex 2507 Type Fasteners
Bolts Types :
Nuts Types:
Washer :
Stainless Steel Fasteners Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Super Duplex 2507 Price Per Kg (As per demand and manufacturer):
| Price of Super Duplex 2507 Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Super Duplex Stainless Steel Fasteners Grade – 2507 | $3.28 | €2.84 | 68 UAE Dirham |
| Super Duplex Stainless Steel Hex Bolts 2507 | $4.08 | €3.52 | 8.34 UAE Dirham |
| Super Duplex Stainless Steel Square Nuts Grade – 2507 | $4.72 | €4.06 | 26.80 UAE Dirham |
Alloy 2507 industrial Fastener exporter in Sharjah, ASME SA479 high tensile Fastener exporter in Coimbatore, Alloy 2507 high tensile Fastener wholesaler in Chennai, Alloy 2507 high tensile Fastener stockiest in Thailand, Alloy 2507 high tensile Fastener wholesaler in Philippines, Alloy 2507 high tensile Fastener stockyards in Sharjah, ASTM A479 industrial Fastener retailer in Coimbatore, ASME SA479 high tensile Fastener manufacturer in Qatar, ASME SA479 industrial Fastener wholesaler in India, Alloy 2507 Hot Forged Fastener exporter in India, UNS S32750 high tensile Fastener supplier in Singapore, UNS S32750 industrial Fastener wholesaler in Ahmedabad, ASME SA479 industrial Fastener dealer in Indonesia.
Super Duplex 2507 industrial Fasteners stockiest in Chennai, ASTM A 182 high tensile Fasteners wholesaler in Bhubaneswar, Super Duplex S32750 industrial Fasteners exporter in Cochin, Alloy 2507 high tensile Fasteners stockiest in Rajkot, ASTM A 182 Hot Forged Fasteners exporter in Rajkot, UNS S32750 Hot Forged Fasteners stockiest in Raipur, ASTM A 182 high tensile Fasteners exporter in Vadodara, ASME SA 182 Hot Forged Fasteners exporter in Indore, UNS S32750 high tensile Fasteners supplier in Thiruvananthapuram, ASME SA 182 high tensile Fasteners trader in Raipur, Werkstoff Nr. 1.4410 industrial Fasteners exporter in Nashik, UNS S32750 industrial Fasteners supplier in Cochin, ASME SA 182 high tensile Fasteners manufacturer in Gandhinagar.
Super Duplex 2507 Hot Forged Fasteners manufacturer in India, Werkstoff Nr. 1.4410 Hot Forged Fasteners distributor in Germany, ASME SA 182 high tensile Fasteners stockiest in Dammam, ASTM A 182 industrial Fasteners dealer in Germany, Super Duplex S32750 industrial Fasteners manufacturer in Italy, Werkstoff Nr. 1.4410 Hot Forged Fasteners supplier in Jordan, ASME SA 182 industrial Fasteners wholesaler in Bahrain, Werkstoff Nr. 1.4410 industrial Fasteners supplier in Canada, Super Duplex 2507 high tensile Fasteners wholesaler in Iraq, UNS S32750 industrial Fasteners dealer in Oman, UNS S32750 high tensile Fasteners supplier in Dubai, UNS S32750 Hot Forged Fasteners exporter in Egypt, UNS S32750 high tensile Fasteners manufacturer in Iraq, Super Duplex S32750 Hot Forged Fasteners supplier in Dubai, ASTM A 182 industrial Fasteners stockiest in Dammam.
