UNS S31703 high tensile Fasteners, SS 317L Hot Forged Fasteners, JIS SUS 317L industrial Fasteners, SS 317L industrial Fasteners, UNS S31703 Hot Forged Fasteners, EN X2Crnimo18-16-4 high tensile Fasteners.
Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
JIS SUS 317L Hot Forged Fasteners distributor, SS 317L Hot Forged Fasteners wholesaler, SS 317L high tensile Fasteners exporter, SS 317L high tensile Fasteners wholesaler, UNS S31703 industrial Fasteners distributor, SS 317L Hot Forged Fasteners dealer, Werkstoff Nr. 1.4438 industrial Fasteners wholesaler, Werkstoff Nr. 1.4438 industrial Fasteners exporter.

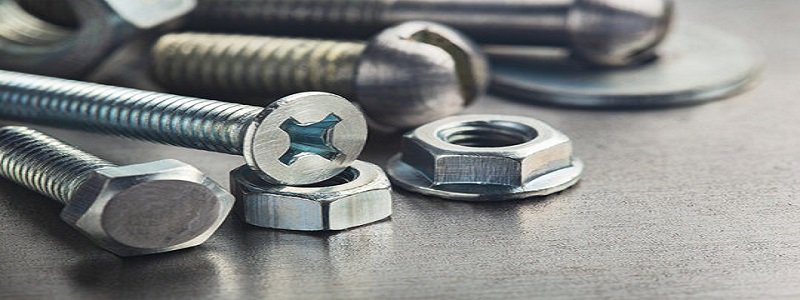

Our 317L Stainless Steel Fasteners product range includes 317L Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
We export to United State,Canada, Kazakhstan, Algiers, Johannesburg, Pretoria, Dakar, Ghana, Uganda, Mozambique, Iraq, Subra al-Haymah,Australia, Yaounde, Saudi Arabia, Kampala, Benin, Ethiopa, Kuwait, Nairobi, Turkey, Russia, Khartoum, Kano, UAE, Bahrain, London, Lebanon, Tunisia, Qatar, Zaria, Dubai, Yemen, Casablanca, South Africa, Oman, UK,USA, Argentina, China,Las Vegas Hong Kong, Vietnam, Singapore, Egypt, Venezuela, Iran,Vancouver Malaysia, Mexico, New York, Indonesia, Italy, Azerbaijan, Israel, Brazil, United States, Thailand (Bangkok), Cyprus, Sri Lanka, Colombo, Germany
JIS SUS 317L high tensile Fasteners, Werkstoff Nr. 1.4438 industrial Fasteners, Werkstoff Nr. 1.4438 Hot Forged Fasteners, Werkstoff Nr. 1.4438 high tensile Fasteners, EN X2Crnimo18-16-4 Hot Forged Fasteners.
Specification of 317L Stainless Steel Fasteners :
| Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
Equivalent Grades of Stainless Steel 317L Fasteners :
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Chemical Composition of 317L Stainless Steel Fasteners :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
Mechanical Properties of SS 317L Fasteners :
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max |
||||
| 317L | 620 MPa | 275 MPa | 45% | 85 | 193 |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4438 :
| Grade | Density (g/cm3) | Elastic Modulus (GPa) |
| 317L | 8 | 193 |
EN X2Crnimo18-16-4 industrial Fasteners supplier, EN X2Crnimo18-16-4 industrial Fasteners manufacturer, JIS SUS 317L industrial Fasteners wholesaler, UNS S31703 high tensile Fasteners exporter, SS 317L Hot Forged Fasteners distributor, JIS SUS 317L industrial Fasteners trader, Werkstoff Nr. 1.4438 industrial Fasteners dealer.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Fasteners 317L Stainless Steel :
Looking for 317L stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 317L stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 317L screws, 317L bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Stainless Steel 317L Fasteners :
Stainless Steel 317L Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 317L Hex Nuts Dimensions Chart :
| Nominal Size Of Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 317L Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Stainless Steel 317L Square Bolts Dimensions Chart :
| Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Stainless Steel 317L Heavy Hex Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 317L Heavy Hex Nuts Dimensions :
| Nominal Size For Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 317L Socket Head Cap Screw Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 317L Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Stainless Steel 317L Flat Washer Dimensions Chart :
| Size Table | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (I.D.) Of (A) |
Outside Diameter (O.D.) Of (B) |
Thickness Of (C) |
I.D. Of (A) |
O.D. Of (B) |
Thickness Of (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
Size of Stainless Steel 317L FASTENER :
Stainless Steel 317L Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Stainless Steel 317L Screws Sizes :
| Screw Size | Body Dia | Minimum Thread Length | Hex Key Size | Head Dia | Head Height | Maximum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 3/8 | 0.05 | 0.096 | 0.06 | 5/8 |
| No. 1 | 0.073 | 3/8 | 1/16 | 0.118 | 0.073 | 7/8 |
| No. 2 | 0.086 | 1/2 | 5/64 | 0.14 | 0.086 | 7/8 |
| No. 3 | 0.099 | 1/2 | 5/64 | 0.161 | 0.099 | 7/8 |
| No. 4 | 0.112 | 11/16 | 3/32 | 0.183 | 0.112 | 11/8 |
| No. 5 | 0.125 | 11/16 | 3/32 | 0.205 | 0.125 | 1 |
| No. 6 | 0.138 | 11/16 | 7/64 | 0.226 | 0.138 | 11/8 |
| No. 8 | 0.164 | 3/4 | 9/64 | 0.27 | 0.164 | 11/4 |
| No. 10 | 0.19 | 15/16 | 5/32 | 0.312 | 0.19 | 13/8 |
| No. 12 | 0.216 | 15/16 | 5/32 | 0.345 | 0.216 | 11/4 |
| 1/4 | 0.250 | 15/16 | 3/16 | 3/8 | 1/4 | 11/2 |
| 5/16 | 0.3125 | 1-1/16 | 1/4 | 15/32 | 5/16 | 1-3/4 |
| 3/8 | 0.375 | 1-3/16 | 5/16 | 9/16 | 3/8 | 2 |
| 7/16 | 0.438 | 13/16 | 3/8 | 21/32 | 7/16 | 2-1/4 |
| 1/2 | 0.500 | 1-3/8 | 3/8 | 3/4 | 1/2 | 2-1/2 |
| 9/16 | 0.5625 | 1-5/8 | 7/16 | 27/32 | 9/16 | 2-7/16 |
| 5/8 | 0.625 | 1-5/8 | 1/2 | 15/16 | 5/8 | 3 |
| 3/4 | 0.750 | 1-7/8 | 5/8 | 11/8 | 3/4 | 3-1/2 |
| 7/8 | 0.875 | 2-1/16 | 3/4 | 15/16 | 7/8 | 3-3/4 |
| 1 | 1.000 | 2-1/4 | 3/4 | 11/2 | 1 | 4-1/2 |
| 1-1/8 | 1.125 | 2-13/16 | 7/8 | 111/16 | 1-1/8 | 4-21/32 |
| 1-1/4 | 1.250 | 3-1/8 | 7/8 | 17/8 | 1-1/4 | 5-3/32 |
| 1-1/2 | 1.500 | 3-3/4 | 1 | 21/4 | 1-1/2 | 6-5/64 |
| 1-3/4 | 1.750 | 4-3/8 | 11/4 | 25/8 | 1-3/4 | 7-1/8 |
| 2 | 2.000 | 5 | 11/2 | 3 | 2 | 8-7/64 |
Stainless Steel 317L Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|
Stainless Steel 317L Washer Sizes :
| Washer Size | Inner Dia, Basic [in] |
Basic Diameter [in] | Outer Dia, Basic [in] |
Series | Washer Thickness, Basic [in] |
|---|---|---|---|---|---|
| #0 | 0.078 | 0.0600 | 0.188 | - | 0.020 |
| #2 | 0.094 | 0.0860 | 0.250 | - | 0.020 |
| #4 | 0.125 | 0.1120 | 0.312 | - | 0.032 |
| #6 | 0.156 | 0.1380 | 0.375 | - | 0.049 |
| #8 | 0.188 | 0.1640 | 0.438 | - | 0.049 |
| #10 | 0.219 | 0.1900 | 0.500 | - | 0.049 |
| 1/4" | 0.281 | 0.2500 | 0.625 | Narrow | 0.065 |
| 1/4" | 0.312 | 0.2500 | 0.734 | Wide | 0.065 |
| 5/16" | 0.344 | 0.3125 | 0.688 | Narrow | 0.065 |
| 5/16" | 0.375 | 0.3125 | 0.875 | Wide | 0.083 |
| 3/8" | 0.406 | 0.3750 | 0.812 | Narrow | 0.065 |
| 3/8" | 0.438 | 0.3750 | 1.000 | Wide | 0.083 |
| 7/16" | 0.469 | 0.4375 | 0.922 | Narrow | 0.065 |
| 7/16" | 0.500 | 0.4375 | 1.250 | Wide | 0.083 |
| 1/2" | 0.531 | 0.5000 | 1.062 | Narrow | 0.095 |
| 1/2" | 0.562 | 0.5000 | 1.375 | Wide | 0.109 |
| 9/16" | 0.594 | 0.5625 | 1.156 | Narrow | 0.095 |
| 9/16" | 0.625 | 0.5625 | 1.469 | Wide | 0.109 |
| 5/8" | 0.656 | 0.6250 | 1.312 | Narrow | 0.095 |
| 5/8" | 0.688 | 0.6250 | 1.750 | Wide | 0.134 |
| 3/4" | 0.812 | 0.7500 | 1.469 | Narrow | 0.134 |
| 3/4" | 0.812 | 0.7500 | 2.000 | Wide | 0.148 |
| 7/8" | 0.938 | 0.8750 | 1.750 | Narrow | 0.134 |
| 7/8" | 0.938 | 0.8750 | 2.250 | Wide | 0.165 |
| 1" | 1.062 | 1.0000 | 2.000 | Narrow | 0.134 |
| 1" | 1.062 | 1.0000 | 2.500 | Wide | 0.165 |
| 1-1/8" | 1.250 | 1.1250 | 2.250 | Narrow | 0.134 |
| 1-1/8" | 1.250 | 1.1250 | 2.750 | Wide | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 2.500 | Narrow | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 3.000 | Wide | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 2.750 | Narrow | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 3.250 | Wide | 0.180 |
| 1-1/2" | 1.625 | 1.5000 | 3.000 | Narrow | 0.165 |
| 1-1/2" | 1.625 | 1.5000 | 3.500 | Wide | 0.180 |
| 1-5/8" | 1.750 | 1.6250 | 3.750 | - | 0.180 |
| 1-3/4" | 1.875 | 1.7500 | 4.000 | - | 0.180 |
| 1-7/8" | 2.000 | 1.8750 | 4.250 | - | 0.180 |
| 2" | 2.125 | 2.0000 | 4.500 | - | 0.180 |
Stainless Steel 317L Type Fasteners
Bolts Types :
Nuts Types:
Washer :
Stainless Steel Fasteners Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Stainless Steel 317L Price Per Kg (As per demand and manufacturer):
| Price of SS 317L Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Fasteners Grade – 317L | $3.08 | €2.64 | 48 UAE Dirham |
| Stainless Steel Hex Bolts 317L | $3.86 | €3.32 | 8.14 UAE Dirham |
| Stainless Steel Square Nuts Grade – 317L | $4.50 | €3.86 | 26.60 UAE Dirham |
Werkstoff Nr. 1.4438 high tensile Fasteners catalogue, ASME SA193 Hot Forged Fasteners At Factory Price, UNS S31703 industrial Fasteners weight chart, ASTM A193 high tensile Fasteners catalogue, Werkstoff Nr. 1.4438 Hot Forged Fasteners price list, ASME SA193 high tensile Fasteners price list, ASTM A193 Hot Forged Fasteners weight chart, UNS S31703 high tensile Fasteners price list in India, UNS S31703 high tensile Fasteners weight chart, ASTM A193 Hot Forged Fasteners weight calculator, SS 317L Hot Forged Fasteners price list, UNS S31703 industrial Fasteners At Factory Price, UNS S31703 industrial Fasteners price list, Werkstoff Nr. 1.4438 high tensile Fasteners price list.
ASME SA193 industrial Fasteners manufacturer in Pimpri-Chinchwad, ASME SA193 Hot Forged Fasteners distributor in Jamnagar, UNS S31703 industrial Fasteners distributor in Bengaluru, UNS S31703 Hot Forged Fasteners manufacturer in Bengaluru, Werkstoff Nr. 1.4438 industrial Fasteners dealer in Chennai, ASME SA193 high tensile Fasteners wholesaler in Pimpri-Chinchwad, ASME SA193 Hot Forged Fasteners supplier in Ahmedabad, SS 317L industrial Fasteners exporter in Chennai, ASME SA193 high tensile Fasteners exporter in Ahmedabad, ASME SA193 high tensile Fasteners dealer in Chennai, ASME SA193 industrial Fasteners manufacturer in Chennai, UNS S31703 high tensile Fasteners exporter in Jamnagar.
ASTM A193 high tensile Fasteners trader in Saudi Arabia, UNS S31703 high tensile Fasteners manufacturer in Singapore, ASME SA193 industrial Fasteners supplier in Saudi Arabia, SS 317L Hot Forged Fasteners manufacturer in Kuwait, ASTM A193 industrial Fasteners distributor in Qatar, ASTM A193 high tensile Fasteners trader in Malaysia, ASTM A193 high tensile Fasteners trader in Abu Dhabi, ASTM A193 high tensile Fasteners supplier in Qatar, ASME SA193 industrial Fasteners dealer in Qatar, Werkstoff Nr. 1.4438 high tensile Fasteners dealer in India, Werkstoff Nr. 1.4438 Hot Forged Fasteners trader in UAE, UNS S31703 high tensile Fasteners exporter in UAE, ASTM A193 industrial Fasteners stockist in Qatar.
