ASME SA193 industrial Fasteners, SS 321 high tensile Fasteners, Stainless Steel 321 Hot Forged Fasteners, Werkstoff Nr. 1.4541 industrial Fasteners, EN X6Crniti18-10 industrial Fasteners.
Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
ASTM A193 high tensile Fasteners wholesaler, Stainless Steel 321 Hot Forged Fasteners exporter, ASME SA193 industrial Fasteners dealer, JIS SUS 321 Hot Forged Fasteners dealer, EN X6Crniti18-10 high tensile Fasteners wholesaler, Werkstoff Nr. 1.4541 high tensile Fasteners dealer, Stainless Steel 321 industrial Fasteners exporter.

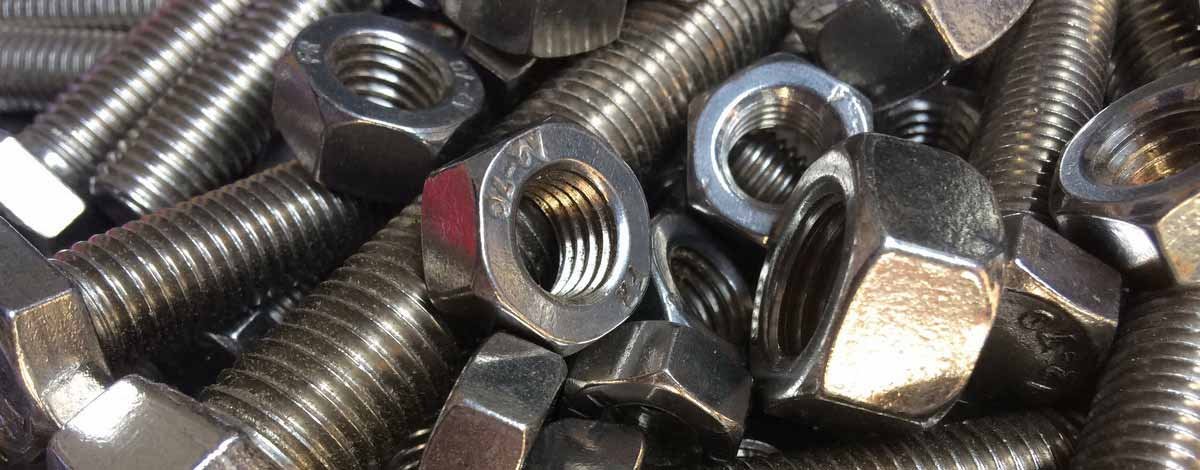

Our 321 Stainless Steel Fasteners product range includes 321 Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
We export to United State,Canada, Kazakhstan, Algiers, Johannesburg, Pretoria, Dakar, Ghana, Uganda, Mozambique, Iraq, Subra al-Haymah,Australia, Yaounde, Saudi Arabia, Kampala, Benin, Ethiopa, Kuwait, Nairobi, Turkey, Russia, Khartoum, Kano, UAE, Bahrain, London, Lebanon, Tunisia, Qatar, Zaria, Dubai, Yemen, Casablanca, South Africa, Oman, UK,USA, Argentina, China,Las Vegas Hong Kong, Vietnam, Singapore, Egypt, Venezuela, Iran,Vancouver Malaysia, Mexico, New York, Indonesia, Italy, Azerbaijan, Israel, Brazil, United States, Thailand (Bangkok), Cyprus, Sri Lanka, Colombo, Germany
ASME SA193 high tensile Fasteners, Werkstoff Nr. 1.4541 Hot Forged Fasteners, ASTM A193 high tensile Fasteners, EN X6Crniti18-10 high tensile Fasteners.
Specification of 321 Stainless Steel Fasteners :
| Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
Equivalent Grades of Stainless Steel 321 Fasteners :
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
Chemical Composition of 321 Stainless Steel Fasteners :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 19.00 | - | 9.00 - 12.00 | - |
Mechanical Properties of SS 321 Fasteners :
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max |
||||
| 321 | 515 MPa | 205 MPa | 40% | 95 | 217 |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4541 :
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100 °C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100 °C | 0-315 °C | 0-538 °C | at 100 °C | at 500 °C | |||||
| 321 | 8027 | 193 | 16.6 | 17.2 | 18.6 | 16.1 | 22.2 | 500 | 720 |
EN X6Crniti18-10 high tensile Fasteners stockiest, ASTM A193 high tensile Fasteners stockiest, EN X6Crniti18-10 high tensile Fasteners supplier, UNS S32100 Hot Forged Fasteners wholesaler, ASME SA193 Hot Forged Fasteners distributor, ASME SA193 high tensile Fasteners stockiest.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Fasteners 321 Stainless Steel :
Looking for 321 stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 321 stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 321 screws, 321 bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Stainless Steel 321 Fasteners :
Stainless Steel 321 Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 321 Hex Nuts Dimensions Chart :
| Nominal Size Of Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 321 Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Stainless Steel 321 Square Bolts Dimensions Chart :
| Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Stainless Steel 321 Heavy Hex Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 321 Heavy Hex Nuts Dimensions :
| Nominal Size For Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 321 Socket Head Cap Screw Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 321 Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Stainless Steel 321 Flat Washer Dimensions Chart :
| Size Table | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (I.D.) Of (A) |
Outside Diameter (O.D.) Of (B) |
Thickness Of (C) |
I.D. Of (A) |
O.D. Of (B) |
Thickness Of (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
Size of Stainless Steel 321 FASTENER :
Stainless Steel 321 Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Stainless Steel 321 Screws Sizes :
| Screw Size | Body Dia | Minimum Thread Length | Hex Key Size | Head Dia | Head Height | Maximum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 3/8 | 0.05 | 0.096 | 0.06 | 5/8 |
| No. 1 | 0.073 | 3/8 | 1/16 | 0.118 | 0.073 | 7/8 |
| No. 2 | 0.086 | 1/2 | 5/64 | 0.14 | 0.086 | 7/8 |
| No. 3 | 0.099 | 1/2 | 5/64 | 0.161 | 0.099 | 7/8 |
| No. 4 | 0.112 | 11/16 | 3/32 | 0.183 | 0.112 | 11/8 |
| No. 5 | 0.125 | 11/16 | 3/32 | 0.205 | 0.125 | 1 |
| No. 6 | 0.138 | 11/16 | 7/64 | 0.226 | 0.138 | 11/8 |
| No. 8 | 0.164 | 3/4 | 9/64 | 0.27 | 0.164 | 11/4 |
| No. 10 | 0.19 | 15/16 | 5/32 | 0.312 | 0.19 | 13/8 |
| No. 12 | 0.216 | 15/16 | 5/32 | 0.345 | 0.216 | 11/4 |
| 1/4 | 0.250 | 15/16 | 3/16 | 3/8 | 1/4 | 11/2 |
| 5/16 | 0.3125 | 1-1/16 | 1/4 | 15/32 | 5/16 | 1-3/4 |
| 3/8 | 0.375 | 1-3/16 | 5/16 | 9/16 | 3/8 | 2 |
| 7/16 | 0.438 | 13/16 | 3/8 | 21/32 | 7/16 | 2-1/4 |
| 1/2 | 0.500 | 1-3/8 | 3/8 | 3/4 | 1/2 | 2-1/2 |
| 9/16 | 0.5625 | 1-5/8 | 7/16 | 27/32 | 9/16 | 2-7/16 |
| 5/8 | 0.625 | 1-5/8 | 1/2 | 15/16 | 5/8 | 3 |
| 3/4 | 0.750 | 1-7/8 | 5/8 | 11/8 | 3/4 | 3-1/2 |
| 7/8 | 0.875 | 2-1/16 | 3/4 | 15/16 | 7/8 | 3-3/4 |
| 1 | 1.000 | 2-1/4 | 3/4 | 11/2 | 1 | 4-1/2 |
| 1-1/8 | 1.125 | 2-13/16 | 7/8 | 111/16 | 1-1/8 | 4-21/32 |
| 1-1/4 | 1.250 | 3-1/8 | 7/8 | 17/8 | 1-1/4 | 5-3/32 |
| 1-1/2 | 1.500 | 3-3/4 | 1 | 21/4 | 1-1/2 | 6-5/64 |
| 1-3/4 | 1.750 | 4-3/8 | 11/4 | 25/8 | 1-3/4 | 7-1/8 |
| 2 | 2.000 | 5 | 11/2 | 3 | 2 | 8-7/64 |
Stainless Steel 321 Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|
Stainless Steel 321 Washer Sizes :
| Washer Size | Inner Dia, Basic [in] |
Basic Diameter [in] | Outer Dia, Basic [in] |
Series | Washer Thickness, Basic [in] |
|---|---|---|---|---|---|
| #0 | 0.078 | 0.0600 | 0.188 | - | 0.020 |
| #2 | 0.094 | 0.0860 | 0.250 | - | 0.020 |
| #4 | 0.125 | 0.1120 | 0.312 | - | 0.032 |
| #6 | 0.156 | 0.1380 | 0.375 | - | 0.049 |
| #8 | 0.188 | 0.1640 | 0.438 | - | 0.049 |
| #10 | 0.219 | 0.1900 | 0.500 | - | 0.049 |
| 1/4" | 0.281 | 0.2500 | 0.625 | Narrow | 0.065 |
| 1/4" | 0.312 | 0.2500 | 0.734 | Wide | 0.065 |
| 5/16" | 0.344 | 0.3125 | 0.688 | Narrow | 0.065 |
| 5/16" | 0.375 | 0.3125 | 0.875 | Wide | 0.083 |
| 3/8" | 0.406 | 0.3750 | 0.812 | Narrow | 0.065 |
| 3/8" | 0.438 | 0.3750 | 1.000 | Wide | 0.083 |
| 7/16" | 0.469 | 0.4375 | 0.922 | Narrow | 0.065 |
| 7/16" | 0.500 | 0.4375 | 1.250 | Wide | 0.083 |
| 1/2" | 0.531 | 0.5000 | 1.062 | Narrow | 0.095 |
| 1/2" | 0.562 | 0.5000 | 1.375 | Wide | 0.109 |
| 9/16" | 0.594 | 0.5625 | 1.156 | Narrow | 0.095 |
| 9/16" | 0.625 | 0.5625 | 1.469 | Wide | 0.109 |
| 5/8" | 0.656 | 0.6250 | 1.312 | Narrow | 0.095 |
| 5/8" | 0.688 | 0.6250 | 1.750 | Wide | 0.134 |
| 3/4" | 0.812 | 0.7500 | 1.469 | Narrow | 0.134 |
| 3/4" | 0.812 | 0.7500 | 2.000 | Wide | 0.148 |
| 7/8" | 0.938 | 0.8750 | 1.750 | Narrow | 0.134 |
| 7/8" | 0.938 | 0.8750 | 2.250 | Wide | 0.165 |
| 1" | 1.062 | 1.0000 | 2.000 | Narrow | 0.134 |
| 1" | 1.062 | 1.0000 | 2.500 | Wide | 0.165 |
| 1-1/8" | 1.250 | 1.1250 | 2.250 | Narrow | 0.134 |
| 1-1/8" | 1.250 | 1.1250 | 2.750 | Wide | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 2.500 | Narrow | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 3.000 | Wide | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 2.750 | Narrow | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 3.250 | Wide | 0.180 |
| 1-1/2" | 1.625 | 1.5000 | 3.000 | Narrow | 0.165 |
| 1-1/2" | 1.625 | 1.5000 | 3.500 | Wide | 0.180 |
| 1-5/8" | 1.750 | 1.6250 | 3.750 | - | 0.180 |
| 1-3/4" | 1.875 | 1.7500 | 4.000 | - | 0.180 |
| 1-7/8" | 2.000 | 1.8750 | 4.250 | - | 0.180 |
| 2" | 2.125 | 2.0000 | 4.500 | - | 0.180 |
Stainless Steel 321 Type Fasteners
Bolts Types :
Nuts Types:
Washer :
Stainless Steel Fasteners Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Stainless Steel 321 Price Per Kg (As per demand and manufacturer):
| Price of SS 321 Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Fasteners Grade – 321 | $3.10 | €2.66 | 50 UAE Dirham |
| Stainless Steel Hex Bolts 321 | $3.88 | €3.34 | 8.16 UAE Dirham |
| Stainless Steel Square Nuts Grade – 321 | $4.52 | €3.88 | 26.62 UAE Dirham |
UNS S32100 Hot Forged Fasteners price list in India, ASTM A193 high tensile Fasteners price list, SS 321 industrial Fasteners price per kg, Stainless Steel 321 Hot Forged Fasteners weight chart, JIS SUS 321 high tensile Fasteners weight chart, Werkstoff Nr. 1.4541 Hot Forged Fasteners catalogue, ASME SA193 high tensile Fasteners weight chart, EN X6Crniti18-10 Hot Forged Fasteners price list in India, SS 321 industrial Fasteners price list, SS 321 industrial Fasteners At Factory Price, Werkstoff Nr. 1.4541 Hot Forged Fasteners price list, ASTM A193 industrial Fasteners weight calculator, ASME SA193 high tensile Fasteners weight calculator, JIS SUS 321 Hot Forged Fasteners At Factory Price.
UNS S32100 high tensile Fasteners distributor in Jamnagar, SS 321 Hot Forged Fasteners dealer in Vadodara, Werkstoff Nr. 1.4541 high tensile Fasteners distributor in Bengaluru, ASTM A193 Hot Forged Fasteners trader in Raipur, SS 321 industrial Fasteners dealer in Gujarat, SS 321 Hot Forged Fasteners stockiest in Pune, ASTM A193 high tensile Fasteners distributor in Salem, Werkstoff Nr. 1.4541 Hot Forged Fasteners manufacturer in Ahmedabad, ASTM A193 Hot Forged Fasteners exporter in Surat, Stainless Steel 321 high tensile Fasteners trader in Raipur, Stainless Steel 321 high tensile Fasteners trader in Visakhapatnam, SS 321 industrial Fasteners wholesaler in Pune, Stainless Steel 321 industrial Fasteners exporter in Bhubaneswar.
SS 321 Hot Forged Fasteners distributor in Jordan, ASME SA193 Hot Forged Fasteners supplier in Iraq, ASTM A193 high tensile Fasteners stockiest in Spain, Werkstoff Nr. 1.4541 Hot Forged Fasteners exporter in Philippines, SS 321 high tensile Fasteners exporter in Iraq, ASME SA193 high tensile Fasteners supplier in Singapore, UNS S32100 high tensile Fasteners exporter in Indonesia, Werkstoff Nr. 1.4541 Hot Forged Fasteners dealer in Brazil, Stainless Steel 321 high tensile Fasteners exporter in Portugal, UNS S32100 high tensile Fasteners exporter in Iraq, Werkstoff Nr. 1.4541 Hot Forged Fasteners trader in Brazil, UNS S32100 high tensile Fasteners dealer in Mexico, Stainless Steel 321 Hot Forged Fasteners dealer in Qatar, Stainless Steel 321 industrial Fasteners wholesaler in Germany, ASTM A193 Hot Forged Fasteners distributor in Indonesia.
